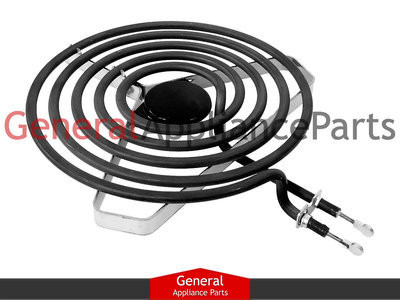

ClimaTek Range Cooktop 8" Heavy Duty Surface Burner Replaces Whirlpool Roper Estate # W10259865

Price: $18.99

Quantity:

Product Description


SPECS:
This heavy duty 8" burner element has 5 turns/rings and has a heavy duty D-Frame structure to support the element. This burner element is rated at 2100 watts. The wire looped terminals have been replaced with these solid terminals. This element also replaces some flat style terminal elements.
COMPATIBLE WITH THESE BRANDS:
Whirlpool Estate KitchenAid Roper Maytag Admiral Amana Speed Queen Jenn-Air Magic Chef Crosley Caloric Glenwood Hardwick Menumaster Modern Maid Montgomery Wards Norge JC Penney Wards Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
The surface burner elements, those metal components that get red-hot and generate heat, are the most important parts of any range. When the elements fail to heat properly, it's time to replace them. It's a simple procedure any electric stove owner can easily accomplish in a few minutes' time. You can usually identify a burnt-out element by blistering or small holes on the element's coils. A burner that plugs into a receptacle is easy to test, just unplug the non-heating burner, plug it into another working receptacle, restore the power to the range, and test it. If the burner works, you know its original receptacle is probably faulty. If it doesn??t work in the good receptacle, the burner is bad and must be replaced. Do not be alarmed if a new element smokes a little when you first use it. This is a factory-applied green coating, that prevents scratches during shipment, burning away.
REPLACES PART NUMBERS:
W10259865 9761345 8053268 7406P070-60 7406P063-60 7406P059-60 3196678
USED ON MODELS:
38FA-2C 38FA-2C-94 38FA-2CW 38FA-2CX-94 38FA-2CX-MO 38FA-2CX-MS 38FA-2CX-OC 38FA-2CX-ON 38FA-2CXW 38FA-2CXW-94 38FA-2CXW-ON 38FB-2C 38FB-2CX-MO 38FB-2CX-ON 38FG-2C 38FG-2CX-ON 38FN-2C 38FN-2CX-94 38FN-2CX-MO 38FN-2CX-MS 38FN-2CX-OC 38FN-2CX-ON 38FN-2CXW 38FN-2CXW-94 38FN-2CXW-ON 38FY-2C 38FY-2CX-MO 38FY-2CX-ON 38FY-2CXW 38FY-2CXW-ON 38HA-2C 38HA-2CW 38HA-2CX-ON 38HA-2CXW-ON 38HB-2CX-ON 38HG-2CX-ON 38HK-2CX-ON 38HN-2C 38HN-2CW 38HN-2CX-ON 38HN-2CXW-ON 38HY-2C 38HY-2CX-ON 38HY-2CXW-ON 38JA-2CX-94 38JA-2CX-ON 38JN-2CX-94 38JN-2CX-ON 4RF315PXEQ0 4RF315PXGQ0 4RF315PXKQ0 4RF315PXMQ0 AER5522VAS0 AER5522VAW0 AER5522VCS0 AER5522VCW0 B35HA-2CX-ON B35HN-2CX-ON B38HA-2CXW-ON B38HA-42TXW B38HN-2CXW-ON B38HN-42TXW B38JA-2CXW-ON B38JN-2CX-ON B38JN-2CXW-ON BNEW3H8TVEV C3581VRV C3581XRA C3581XRW C3882VRV C3882XRA C3882XRW CC3531WRA CC3531WRV CC3531WRW CC3531XRA CC3531XRL CC3531XRW CC3872XRA CC3872XRW CES365HQ0 CES365HQ1 CES365HZ0 CES365HZ1 CRE305 CRE355 CRE383 CRE655 CRE683 CRE7500ACL CRE7500ACW CRE7600ACL CRE7600ACW CRE7700ADE CRE7700ADL CRE7700ADW CRE775 CRE8400ACL CRE8400ACW CRE8600ACL CRE8600ACW CRE8700ADE CRE8700ADL CRE8700ADW CRE9400ACL CRE9400ACW CRE9500ACE CRE9500ACL CRE9500ADE CRE9500ADL CRE9500ADW FES325RQ0 FES325RQ1 FES325RQ2 FES326RD0 GR395LXGB0 GR395LXGB1 GR395LXGB2 GR395LXGQ0 GR395LXGQ1 GR395LXGQ2 GR395LXGT2 GR395LXGZ0 GR395LXGZ1 GR395LXGZ2 IME31300 IME31301 IME31302 IME32300 IME32301 IME32302 IME32303 IME33300 IME33302 IME33303 IMP33801 IMP33802 IRE31300 IRE31301 IRE32300 IRE32301 IRE32302 IRE32303 IRP33800 IRP33801 IRP33802 IRP33803 IVE32300 IVP33800 L3510PRV L3521WRV L3521XRA L3521XRW L3581VRV L3872VRV L3882VRV L3882XRA L3882XRW LCRE655 LCRE683 RF114PXSB0 RF114PXSB1 RF114PXSB2 RF114PXSB3 RF114PXSQ0 RF114PXSQ1 RF114PXSQ2 RF114PXSQ3 RF114PXST0 RF114PXST1 RF114PXST2 RF114PXST3 RF261PXSQ0 RF261PXSQ1 RF261PXST0 RF261PXST1 RF261PXSW0 RF261PXSW1 RF263LXTB0 RF263LXTB1 RF263LXTB2 RF263LXTB3 RF263LXTQ0 RF263LXTQ1 RF263LXTQ2 RF263LXTQ3 RF263LXTS0 RF263LXTS1 RF263LXTS2 RF263LXTS3 RF263LXTT0 RF263LXTT1 RF263LXTT2 RF263LXTT3 RF263LXTW0 RF263LXTW1 RF263LXTW2 RF264LXSB0 RF264LXSB1 RF264LXSB2 RF264LXSB3 RF264LXSQ0 RF264LXSQ1 RF264LXSQ2 RF264LXSQ3 RF264LXST0 RF264LXST1 RF315PXEN0 RF315PXEQ0 RF315PXEW0 RF315PXGN0 RF315PXGN1 RF315PXGQ0 RF315PXGQ1 RF315PXGT1 RF315PXGV1 RF315PXGW0 RF315PXGW1 RF315PXKB0 RF315PXKQ0 RF315PXKT0 RF315PXKV0 RF315PXKW0 RF315PXMB0 RF315PXMQ0 RF315PXMT0 RF315PXMV0 RF315PXMW0 RF315PXPB0 RF315PXPB1 RF315PXPB2 RF315PXPB3 RF315PXPQ0 RF315PXPQ1 RF315PXPQ2 RF315PXPQ3 RF315PXPT0 RF315PXPT1 RF315PXPT2 RF315PXPT3 RF325PXEN0 RF325PXEQ0 RF325PXEW0 RF325PXEZ0 RF325PXGN0 RF325PXGN1 RF325PXGQ0 RF325PXGQ1 RF325PXGW0 RF325PXGW1 RF325PXGZ0 RF325PXGZ1 RF362BXGN0 RF362BXGN1 RF362BXGQ0 RF362BXGQ1 RF362BXGT1 RF362BXGV1 RF362BXGW0 RF362BXGW1 RF362BXKQ0 RF362BXKQ1 RF362BXKT0 RF362BXKT1 RF362BXKV0 RF362BXKV1 RF362BXKW0 RF362BXKW1 RF362BXMQ0 RF362BXMT0 RF362BXMV0 RF362BXMW0 RF365PXGN0 RF365PXGN1 RF365PXGQ0 RF365PXGQ1 RF365PXGT1 RF365PXGW0 RF365PXGW1 RF365PXKQ0 RF365PXKT0 RF365PXKV0 RF365PXKW0 RF365PXMQ0 RF365PXMQ1 RF365PXMQ2 RF365PXMQ3 RF365PXMT0 RF365PXMT1 RF365PXMT2 RF365PXMT3 RF365PXMV0 RF365PXMV1 RF365PXMV2 RF365PXMW0 RF365PXMW1 RF365PXMW2 RF365PXMW3 RF367LXKB0 RF367LXKQ0 RF367LXKT0 RF367LXKV0 RF367LXKW0 RF367LXMB0 RF367LXMQ0 RF367LXMT0 RF367LXMV0 RF367LXMW0 RF369LXPB0 RF369LXPB1 RF369LXPB2 RF369LXPB3 RF369LXPQ0 RF369LXPQ1 RF369LXPQ2 RF369LXPQ3 RF369LXPT0 RF369LXPT1 RF369LXPT2 RF370LXGN0 RF370LXGW0 RF370PXGQ0 RF370PXGQ1 RF370PXGZ0 RF370PXGZ1 RF372BXEN0 RF372BXEQ0 RF372BXEW0 RF372BXEZ0 RF375PXEN0 RF375PXEQ0 RF375PXEW0 RF375PXEZ0 RF377PXGB0 RF377PXGB1 RF377PXGB5 RF377PXGN0 RF377PXGN1 RF377PXGN5 RF377PXGQ0 RF377PXGQ1 RF377PXGQ5 RF377PXGT1 RF377PXGV1 RF377PXGW0 RF377PXGW1 RF377PXGW5 RF377PXGZ0 RF377PXGZ1 RF377PXGZ5 RF379LXKB0 RF379LXKQ0 RF379LXKQ1 RF379LXKT0 RF379LXKT1 RF379LXMQ0 RF379LXMT0 RF385PXEN0 RF385PXEQ0 RF385PXEW0 RF385PXEZ0 RF385PXGB1 RF385PXGB2 RF385PXGN0 RF385PXGN1 RF385PXGN2 RF385PXGQ0 RF385PXGQ1 RF385PXGQ2 RF385PXGT2 RF385PXGW0 RF385PXGW1 RF385PXGW2 RF385PXGZ0 RF385PXGZ1 RF385PXGZ2 RF387LXGN0 RF387LXGN1 RF387LXGQ0 RF387LXGQ1 RF387LXGW0 RF387LXGW1 RF387LXHQ0 RF387LXHQ1 RF387LXHT1 RF387LXHZ0 RF389LXKB0 RF389LXKQ0 RF389LXKT0 RF395LXEB0 RF395LXEQ0 RF395LXEZ0 RS675PXGB0 RS675PXGB10 RS675PXGB12 RS675PXGB14 RS675PXGB15 RS675PXGB4 RS675PXGB5 RS675PXGB6 RS675PXGB7 RS675PXGB8 RS675PXGB9 RS675PXGQ0 RS675PXGQ10 RS675PXGQ12 RS675PXGQ14 RS675PXGQ15 RS675PXGQ4 RS675PXGQ5 RS675PXGQ6 RS675PXGQ7 RS675PXGQ8 RS675PXGQ9 RS675PXGT10 RS675PXGT12 RS675PXGT14 RS675PXGT15 RS675PXGT5 RS675PXGT7 RS675PXGT8 RS675PXGT9 RS675PXGZ0 RS675PXGZ4 RS675PXGZ5 RS675PXGZ6 S38FA-2CX-94 S38FK-2CX-94 S38FK-2CX-OC S38FY-2CX-94 TEP325KW0 TEP325MW0 TES325KQ0 TES325MQ0 TES325MQ1 TES325MQ2 TES325MQ3 TES325MQ4 TES325MQ5 TES325MT4 TES325MT5 TES325VQ0 TES325VT0 TES326RD0 TES326RD1 TES326RD2 TES326RD3 TES326RD4 TES326VD0 WERC3100PQ0 WERC3100PQ1 WERC3100PQ2 WERE3000PB4 WERE3000PB5 WERE3000PQ0 WERE3000PQ1 WERE3000PQ2 WERE3000PQ4 WERE3000PQ5 WERE3000SB0 WERE3000SB1 WERE3000SB2 WERE3000SQ0 WERE3000SQ1 WERE3000SQ2 WERE3100PQ0 WERE3100PQ1 WERE3100PQ2 WERE3110PQ0 WERE3110PQ1 WERP3000PB4 WERP3000PQ0 WERP3000PQ1 WERP3000PQ2 WERP3000PQ3 WERP3000PQ4 WERP3100PB0 WERP3100PB1 WERP3100PB2 WERP3100PB3 WERP3100PB4 WERP3100PQ0 WERP3100PQ1 WERP3100PQ2 WERP3100PQ3 WERP3100PQ4 WERP3100PS0 WERP3100PS1 WERP3100PS2 WERP3100PS3 WERP3100PS4 WERP3100PT0 WERP3100PT1 WERP3101SB0 WERP3101SB1 WERP3101SB2 WERP3101SQ0 WERP3101SQ1 WERP3101SQ2 WERP3101SS0 WERP3101SS1 WERP3101SS2 WERP3120PB0 WERP3120PB1 WERP3120PB2 WERP3120PB3 WERP3120PQ0 WERP3120PQ1 WERP3120PQ2 WERP3120PQ3 WERP3200PQ0 WERP3200PQ1 WERP3200PQ2 YKERI204PB0 YKERI204PB1 YKERI204PB2 YKERI204PW0 YKERI204PW1 YKERI204PW2 YKERI204PW3 YMER7660WB0 YMER7660WB1 YMER7660WS0 YMER7660WS1 YMER7660WW0 YMER7660WW1 YRF115LXVB0 YRF115LXVQ0 YRF115LXVS0 YRF263LXTB0 YRF263LXTQ0 YRF263LXTS0
