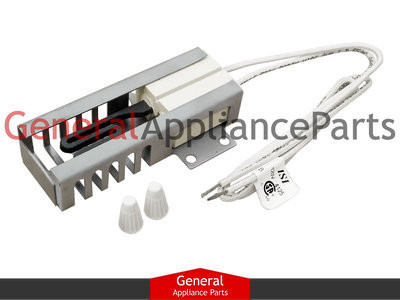

- ClimaTek Ignitor Igniter Replaces Whirlpool # 816826 816625 4372474 4371216 4337848 4320913 4163781
Product Description
SPECS:
This igniter's amperage range is 3.3 - 3.6. Used with 3.2 to 3.5 amp rated gas safety valves. Includes: high temperature stainless steel shield high temperature MGT wire leads and high temperature ceramic wire nuts to wire into original harness. Replaces long and short ignitors. Be careful not to drop your new ignitor; ignitors are fragile and will break easily.
COMPATIBLE WITH THESE BRANDS:
Whirlpool Estate KitchenAid Roper Maytag Admiral Amana Speed Queen Jenn-Air Magic Chef Crosley Caloric Glenwood Hardwick Menumaster Modern Maid Montgomery Wards Norge JC Penney Wards Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
The oven igniter, also called a glow bar, heats up the bimetal switch and causes the oven to ignite the gas fed to the burners. A common issue when the oven fails to ignite is a faulty glow bar. If the oven does not start within 90 seconds, the glow bar is likely the issue. Do not be fooled if the glow bar turns red. If it does not reach the appropriate temperature, the oven will not light. If your ignitor uses a connector on the end, reuse the connector from the old ignitor. Use your wire cutters to cut the wires on the old ignitor several inches above the connector. Strip the ends of the wires with a wire stripper. Place the end of a wire on the connector next to the end of a wire on your new ignitor. Use a ceramic wire nut to twist and hold the wires together. Your wires are not color coded, so it does not matter which wires are connected together. Your old ignitor can get very hot even if it doesn't ignite the burner tube.
REPLACES PART NUMBERS:
814269 816928 816826 816625 4372474 4371216 4337848 4320913 4163781
USED ON MODELS:
FGC355YW0 FGC355YW1 FGP315YW0 FGP315YW1 FGP325AL0 FGP325AW0 FGP325YL2 FGP325YL3 FGP325YW0 FGP325YW1 FGP325YW2 FGP335BL0 FGP335BL1 FGP335BL2 FGP335BL4 FGP335BQ0 FGP335BQ00 FGP335BQ1 FGP335BQ2 FGP335BW0 FGP335BW1 FGP335BW2 FGP335BW3 FGP335BW4 FGP335YL2 FGP335YW0 FGP335YW1 FGP335YW2 FGP345YW0 FGP355YW0 FGP357YL3 FGP357YW0 FGP357YW1 FGP357YW2 FGP357YW3 FGS385BL0 FGS385BL1 FGS385BL2 FGS385BL3 FGS385BL4 FGS385BL5 FGS385BQ1 FGS385BQ2 FGS385BQ3 FGS385BW0 FGS385BW1 FGS385BW2 FGS385BW3 FGS385BW4 FGS385BW5 FGS385VW0 FGS385VW1 FGS385VW2 FGS385YW0 FGS385YW1 FGS385YW2 FGS387YL3 FGS387YW0 FGS387YW1 FGS387YW2 FGS387YW3 FGS395BL0 FGS395BW0 FGS395VW0 FGS395VW1 FGS395VW2 FGS395YW0 FGS395YW1 FGS397XW0 KGBS145SBL0 KGBS146SBL0 KGBS245SBL0 KGBS246SBL0 SB100PEDB0 SB100PEDB1 SB100PEDB2 SB100PEDB4 SB100PEDB5 SB130PEDB0 SB130PEDB1 SB130PEDB2 SB160PEXB0 SB160PEXQ0 SB160PEXQ1 SE960PEYN3 SE960PEYW0 SE960PEYW1 SE960PEYW2 SE960PEYW3 SF3000EYN2 SF3000EYN3 SF3000EYN4 SF3000EYN5 SF3000EYW0 SF3000EYW1 SF3000EYW2 SF3000EYW3 SF3000EYW4 SF3000EYW5 SF302BEAN1 SF302BEAN2 SF302BEAN3 SF302BEAQ0 SF302BEAQ1 SF302BEAW0 SF302BEAW1 SF302BEAW2 SF302BEAW3 SF302BEYQ0 SF302BEYQ1 SF302BEYW0 SF310PEAN1 SF310PEAN2 SF310PEAQ0 SF310PEAQ1 SF310PEAQ2 SF310PEAQ3 SF310PEAQ4 SF310PEAW0 SF310PEAW1 SF310PEAW2 SF310PEYQ0 SF310PEYQ1 SF310PEYQ2 SF310PEYW0 SF310PEYW1 SF314PEAN1 SF314PEAN2 SF314PEAN3 SF314PEAN4 SF314PEAW0 SF314PEAW1 SF314PEAW2 SF314PEAW3 SF314PEAW4 SF317PCYW0 SF317PEAN0 SF317PEAN1 SF317PEAN2 SF317PEAN3 SF317PEAN4 SF317PEAW0 SF317PEAW1 SF317PEAW2 SF317PEAW3 SF317PEAW4 SF317PEYN0 SF317PEYN1 SF317PEYW0 SF317PEYW1 SF330PEYW0 SF337PEAN0 SF337PEAW0 SF337PEYW0 SF337PEYW1 SF365BEWN1 SF365BEWW0 SF365BEWW1 SF365BEWW2 SF365BEWW3 SF365BEXW0 SF365BEXW1 SF365BEYN3 SF365BEYN4 SF365BEYN5 SF365BEYN6 SF365BEYQ0 SF365BEYQ1 SF365BEYQ2 SF365BEYQ3 SF365BEYQ4 SF365BEYQ5 SF365BEYQ6 SF365BEYQ7 SF365BEYW0 SF365BEYW1 SF365BEYW2 SF365BEYW3 SF365BEYW4 SF365BEYW5 SF365BEYW6 SF367PEYB1 SF367PEYB2 SF367PEYB3 SF367PEYN0 SF367PEYN1 SF367PEYN2 SF367PEYN3 SF367PEYN4 SF367PEYN6 SF367PEYN7 SF367PEYQ0 SF367PEYQ1 SF367PEYQ2 SF367PEYQ3 SF367PEYQ4 SF367PEYQ5 SF367PEYQ6 SF367PEYQ7 SF367PEYQ8 SF367PEYQ9 SF367PEYW0 SF367PEYW1 SF367PEYW2 SF367PEYW3 SF367PEYW4 SF367PEYW6 SF367PEYW7 SF370PEWW0 SF370PEWW1 SF370PEWW2 SF370PEWW3 SF375PEWN2 SF375PEWW0 SF375PEWW1 SF375PEWW2 SF375PEWW3 SF376PEWW0 SF376PEWW1 SF376PEWW2 SF376PEWW3 SF385PEWW0 SF385PEWW1 SF385PEWW2 SF385PEWW3 SF385PEWW4 SF385PEYN3 SF385PEYN4 SF385PEYQ0 SF385PEYQ2 SF385PEYQ3 SF385PEYQ4 SF385PEYQ5 SF385PEYW0 SF385PEYW1 SF385PEYW2 SF385PEYW3 SF385PEYW4 SF386PEWW0 SF386PEWW1 SF386PEWW2 SF386PEWW3 SF386PEWW4 SF387PCYW0 SF387PCYW1 SF387PCYW2 SF387PEYB2 SF387PEYB3 SF387PEYB4 SF387PEYB5 SF387PEYB6 SF387PEYB7 SF387PEYB8 SF387PEYN0 SF387PEYN1 SF387PEYN2 SF387PEYN3 SF387PEYN4 SF387PEYN5 SF387PEYN6 SF387PEYN7 SF387PEYN8 SF387PEYQ1 SF387PEYQ2 SF387PEYQ3 SF387PEYQ4 SF387PEYQ5 SF387PEYQ6 SF387PEYQ7 SF387PEYQ8 SF387PEYW0 SF387PEYW1 SF387PEYW2 SF387PEYW3 SF387PEYW4 SF387PEYW5 SF387PEYW6 SF387PEYW7 SF387PEYW8 SF397PEYQ1 SF397PEYQ2 SF397PEYW0 SGS395XX0 SGS395XX1 SGS395XX2 SM980PEYW0 SM980PEYW2 SS373PEX1 SS373PEXT0 TGR51W0YW0 TGR51W0YW1 TGR51W0YW2 TGR61W2BN0 TGR61W2BN1 TGR61W2BN2 TGR61W2BW0 TGR61W2BW1 TGR61W2BW2 TGR88W2BN0 TGR88W2BW0
