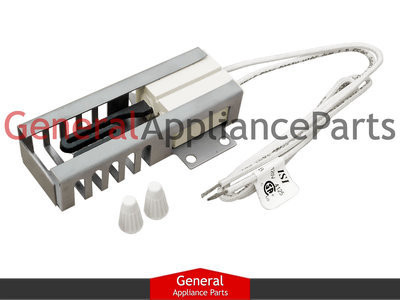

- ClimaTek Gas Oven Flat Ignitor Igniter Replaces Whirlpool # 0309155 0309146 0309144 0059394 0059393
Product Description
SPECS:
This igniter's amperage range is 3.3 - 3.6. Used with 3.2 to 3.5 amp rated gas safety valves. Includes: high temperature stainless steel shield high temperature MGT wire leads and high temperature ceramic wire nuts to wire into original harness. Replaces long and short ignitors. Be careful not to drop your new ignitor; ignitors are fragile and will break easily.
COMPATIBLE WITH THESE BRANDS:
Whirlpool Estate KitchenAid Roper Maytag Admiral Amana Speed Queen Jenn-Air Magic Chef Crosley Caloric Glenwood Hardwick Menumaster Modern Maid Montgomery Wards Norge JC Penney Wards Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
The oven igniter, also called a glow bar, heats up the bimetal switch and causes the oven to ignite the gas fed to the burners. A common issue when the oven fails to ignite is a faulty glow bar. If the oven does not start within 90 seconds, the glow bar is likely the issue. Do not be fooled if the glow bar turns red. If it does not reach the appropriate temperature, the oven will not light. If your ignitor uses a connector on the end, reuse the connector from the old ignitor. Use your wire cutters to cut the wires on the old ignitor several inches above the connector. Strip the ends of the wires with a wire stripper. Place the end of a wire on the connector next to the end of a wire on your new ignitor. Use a ceramic wire nut to twist and hold the wires together. Your wires are not color coded, so it does not matter which wires are connected together. Your old ignitor can get very hot even if it doesn't ignite the burner tube.
REPLACES PART NUMBERS:
31939701 Y0311618 Y0309156 Y0309155 Y0309146 Y0309144 Y0059394 Y0059393 R0710132 R0710131 8189525 59394 4363761 4363760 4363369 4362769 4320445 311618 309156 309146 14253368 14211461 0311618 0309156 0309155 0309146 0309144 0059394 0059393
USED ON MODELS:
AGOD2750E AGOD2750WW AO27DG AO27DG AO27DG1 AO27DG1 AO27DG1 AO27DG1 AO27DG1 AO27DGK AO27DGK AO27DGK AO27DGK AO27DGK AO27DGW AO27DGW1 AO27DGW1 AO27DGW1 AO27DGW1 AO27DGW1 AOGD2750E AOGD2750E AOGD2750E AOGD2750E AOGD2750E AOGD2750E AOGD2750E AOGD2750SS AOGD2750SS AOGD2750WW AOGD2750WW AOGD2750WW AOGD2750WW AOGD2750WW FGC355VL3 FGC355VW0 FGC355VW1 FGC355VW2 FGC355VW3 FGP325VW0 FGP325VW1 FGP325VW2 FGP335VW0 FGP335VW1 FGP335VW2 FGP335VW3 FGP345VW0 FGP345VW1 FGP345VW2 FGP355VW0 FGP355VW1 FGP355VW2 FGP355VW3 FGP357XW0 KGBS276XBL0 KGBS276XWH0 PHO-203-UD PHO-203-UW PHO-203-UWW PHO303UB PHO303UK PHO303UWW RLS340UOFC RLS340UOFC RLS358UOFC RLS358UOFC RLS359UOFC RLS359UOFC RLS363UL RLS363UW RLS379 RLS640 RLT-305 RLT-356 RLT-359 RLT-360 RLT-370 RLT-371 RLT-380 RLT307UK RLT307UL RLT307UW RLT359UCO RLT359UCO RLT365UL RLT365UW RLT365UWW RLT370UCO RLT370UCO RLT375UL RLT375UW RMS363UL RMS363UW RMS379 RMS399 RMS640 RMT-306 RMT-359 RMT-360 RMT-370 RMT-380 RMT-381 RMT365UL RMT365UW RMT365UWW RMT375UL RMT375UW RYD249 SF3000EWW0 SF3000EWW1 SF302BEWN1 SF302BEWW0 SF302BEWW1 SF3100EWW0 SF3100EWW1 SF310PEWW0 SF310PEWW2 SF310PEWW3 SF316PEWN0 SF316PEWW0 SF317PEXW0 SF3300EWW0 SF3300EWW1 SF330PEWN0 SF330PEWN2 SF330PEWN4 SF330PEWN5 SF330PEWN6 SF330PEWQ0 SF330PEWQ1 SF330PEWQ2 SF330PEWW0 SF330PEWW2 SF330PEWW3 SF330PEWW4 SF330PEWW5 SF330PEWW6 SF330PEWW7 SF332BEWW0 SF332BEWW1 SF336PEWW0 SF337PEXW0
