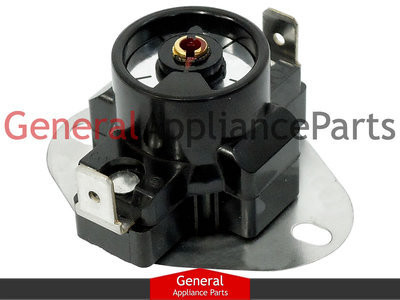

- ClimaTek Dryer Adjustable Thermostat Replaces Whirlpool # 291048 289250 238196 237443 232077 230213
Product Description
SPECS:
This thermostat has an adjustable limit range of 135 - 175 degrees Fahrenheit and a differential of 20 degrees. Meaning that with this thermostat, the heating element will cut out in the range of 135 - 175 degrees and cycle back on once the internal temperature drops by 20 degrees.
COMPATIBLE WITH THESE BRANDS:
Whirlpool Estate KitchenAid Roper Maytag Admiral Amana Speed Queen Jenn-Air Magic Chef Crosley Caloric Glenwood Hardwick Menumaster Modern Maid Montgomery Wards Norge JC Penney Wards Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
If the limit switch has blown, it might appear black or gray upon inspection. Also, your appliance likely has lost some of its capabilities. Even if you restore power to the appliance by resetting its main circuit breakers, tripped by the limit switch, the appliance might not heat properly. Only after you replace the switch will all of the appliance's typical competences return. Don't replace the switch until you identify the reason your appliance overheated and caused the switch to trigger; otherwise the issue might happen again.
REPLACES PART NUMBERS:
3391381 688475 688470 660368 660068 341903 341902 341681 341197 339907 299750 299624 298250 295432 295429 291048 289250 238196 237443 232077 230213
USED ON MODELS:
1105807100 1105807300 1105807800 1105807801 1105807810 1105807811 1105807850 1105807851 1105807860 1105807861 1105807950 1105807951 1105807960 1105807961 1105808810 1105808860 1105808950 1105907000 1105907100 1105907800 1105907801 1105907802 1105907950 1105907951 1106007101 1106007700 1106007710 1106007711 1106007712 1106007713 1106007716 1106007717 1106007800 1106007950 1106107700 1106107701 1106107710 1106107800 1106107801 1106107803 1106117800 1106117801 1106117820 1106117821 1106117824 1106117870 1106207501 1106207800 1106207801 1106307830 1106308805 1106308806 1106308807 1106309800 1106309810 1106407700 1106407800 1106407801 1106407840 1106407900 1106407901 1106407930 1106407931 1106408902 1106507821 1106507822 1106507823 1106507825 1106507941 1106509900 1106509901 1106509910 1106509930 1106509931 1106509932 1106517742 1106517744 1106517745 1106517746 1106518801 1106518802 1106607930 1106607931 1106618240 1106618241 1106618242 1106618250 1106618251 1106618252 1106707622 1106708701 1106717502 1106717505 1106807601 1106807611 1106807613 1106807614 1106807615 1106807701 1106807703 1106807704 1106807705 1106807810 1106807811 1106807813 1106807814 1106807820 1106807822 1106807830 1106807840 1106807901 1106807910 1106807913 1106807914 1106817210 1106817220 1106817230 1106817231 1106817233 1106817240 1106817241 1106817243 1106817800 1106818210 1106818220 1106818230 1106818232 1106818240 1106818242 1106857701 1106857702 1106857703 1106907500 1106907501 1106907504 1106907510 1106907600 1106907601 1106907603 1106907610 1106907611 1106907612 1106907613 1106907701 1106907702 1106907703 1106907800 1106907802 1106907803 1106909900 1106909910 1106917701 1106917702 1106917703 1106917704 1106917720 1106917721 1106917800 1106917802 1106927450 1106957700 1106957701 1106957702 1106957703 1106957704 1106957705 1106957706 1106957710 1106957711 1107007100 1107007110 1107007400 1107007401 1107007500 1107007501 1107007502 1107007510 1107007520 1107007521 1107007600 1107007601 1107007700 1107007701 1107007702 1107007800 1107007801 1107007802 1107007803 1107007804 1107007900 1107007901 1107007902 1107007903 1107007904 1107017000 1107017010 1107017011 1107017012 1107017013 1107017600 1107017602 1107017610 1107017611 1107017620 1107017800 1107017801 1107018000 1107018010 1107018011 1107018012 1107057700 1107057701 1107057702 1107057720 1107057721 1107107800 1107107801 1107107802 1107107900 1107109900 1107109901 1107117030 1107117031 1107117032 1107117800 1107117801 1107118030 1107118031 1107157710 1107207100 1107207400 1107207610 1107207611 1107207630 1107207700 1107207701 1107207800 1107207801 1107207802 1107207900 1107207901 1107208300 1107208301 1107208350 1107217600 1107217601 1107217620 1107217621 1107217622 1107217624 1107217800 1107307620 1107307621 1107307622 1107307623 1107307810 1107307811 1107307812 1107307813 1107317610 1107357620 1107357640 11076401100 11076401400 11076401600 11076402100 11076402110 11076402400 11076402410 11076402600 11076402610 11076403100 11076403400 11076403600 11076404100 11076405100 11076405400 11076405600 11076406100 11076406110 11076406400 11076406410 11076406600 11076406610 11076407100 11076407400 11076407600 11076408100 11076408400 11076408600 11076408800 11077401100 11077401110 11077401120 11077401400 11077401410 11077401420 11077401600 11077401610 11077401620 11077490100 11077490200 11077490400 11077490600 11077611100 11077640100 11077645100 11077670100 11077675100 11077675200 11077675400 11077675600 11077677110 11078430100 11078490100 11078490110 11078490200 11078490210 11078490400 11078490410 11078490600 11078490610 11078491100 11078491110 11078491200 11078491210 11078491400 11078491410 11078491600 11078491610 11078570100 11078590100 11078590200 11078590400 11078590600 11078670100 11078690100 11078690200 11078690400 11078690600 11078770100 11078770200 11078770400 11078770600 11078790100 11078790200 11078790400 11078790600 11078790800 11078791200 11078791400 11078791600 11078870100 11078870200 11078870400 11078870600 11078870800 11078890100 11078890200 11078890400 11078890600 11078890800 11079495100 11079495110 11079495200 11079495210 11079495400 11079495410 11079495600 11079495610 11079496100 11079496110 11079496200 11079496210 11079496400 11079496410 11079496600 11079496610 11088090100 11088090200 11088090400 11088090600 11088090800 11088390100 11088390110 11088390120 11088390130 11088390200 11088390210 11088390300 11088390310 11088390320 11088390330 11088390400 11088390410 11088390600 11088390610 11088390620 11088390630 11088390700 11088390710 11088390720 11088390730 11088390800 11088390810 11088390820 11088390830 11088570100 11088570800 11088670100 11088670300 11088670600 11088670700 11088670800 11088722890 11088722891 11088724890 11088724891 11088732790 11088870100 11088870110 11088870111 11088870120 11088870300 11088870600 11088870700 11088870800 11088870810 11088870811 11088870820 11089390830 11098572200 11098572210 11098572400 11098572410 11098573100 11098573110 11098573120 11098573130 11098573800 11098573810 11098573820 11098573830 11098673830 1LE4900XKW0 3CE2110XMW0 3CE2110XMW1 3CE2110XMW2 3CFE2510W1 3CFE2510W2 6CE2950XWN0 6CE2950XWW0 6LE5700XSW0 6LER5434BQ0 6LER5434BQ2 6LER5434BQ3 6LER5434BW0 6LER5434BW2 6LER5434BW3 8LDR3422YG0 8LDR3822DZ0 BYCCD3421W0 BYCCD3421W1 BYCCD3421W2 CFE1300W2 CFE1300W3 CFI1301W2 GLE5700XSW0 GLE7900XKW0 GLE7900XMW0 GLE7900XMW1 GLE7900XMW2 GLE7900XMW3 GLHE7900W0 LDR3422AW0 LDR3822BN0 LDR3822BW0 LDR3822DQ1 LDR3822DQ2 LDR3822DZ1 LDR3822DZ2 LE4900XKW0 LE4900XMW0 LE4900XMW1 LE4900XSW0 LE4900XTW0 LE4900XTW1 LE4900XTW2 LE4905XMW0 LE4905XMW1 LT4900XMW0 LT4900XMW1 LT4900XMW2 LT4900XSW1 LT4900XSW2 LT4900XSW3 LT4905XMW0 REP3422AW0 REP3622BL0 REP3622BW0 REP3822DW1 RF398PXPW0 RF398PXPW1 RF398PXVW0 RF398PXWW0 RF398PXWW1 RF398PXWW2
