- ClimaTek 8" Surface Burner Replaces Whirlpool # Y0060256 R0710076 R0710047 C2725402 C2725401 7656600
Product Description
SPECS:

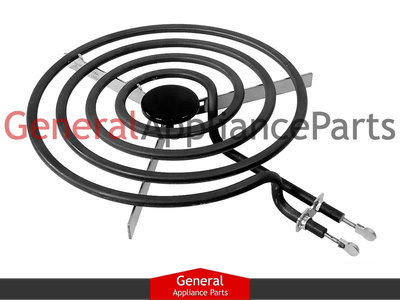

This 8" burner element has 4 turns/rings and has a Y-Frame structure to support the element. This burner element is rated at 2100 watts. The wire looped terminals have been replaced with these solid terminals. This element also replaces some flat style terminal elements.
COMPATIBLE WITH THESE BRANDS:
Whirlpool Estate KitchenAid Roper Maytag Admiral Amana Speed Queen Jenn-Air Magic Chef Crosley Caloric Glenwood Hardwick Menumaster Modern Maid Montgomery Wards Norge JC Penney Wards Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
The surface burner elements, those metal components that get red-hot and generate heat, are the most important parts of any range. When the elements fail to heat properly, it's time to replace them. It's a simple procedure any electric stove owner can easily accomplish in a few minutes' time. You can usually identify a burnt-out element by blistering or small holes on the element's coils. A burner that plugs into a receptacle is easy to test, just unplug the non-heating burner, plug it into another working receptacle, restore the power to the range, and test it. If the burner works, you know its original receptacle is probably faulty. If it doesn??t work in the good receptacle, the burner is bad and must be replaced. Do not be alarmed if a new element smokes a little when you first use it. This is a factory-applied green coating, that prevents scratches during shipment, burning away.
REPLACES PART NUMBERS:
9761346 74007159 74004484 74003223 3196679 31734604 0316795 0311806 0089219 0060256 Y0316795 Y0311806 Y0089219 Y0060256 R0710076 R0710047 C2725402 C2725401 C27254-2 C27254-1 C2714701 8053267 7656600
USED ON MODELS:
4RF302BXEQ1 4RF302BXGQ0 4RF302BXGQ1 4RF302BXKQ0 4RF302BXKQ1 9609012190 9609012191 9609012192 9609012890 9609012891 9609012892 9609072190 9609072890 AEP222VAW0 AER1110BAH AER3311WAW0 AER4111AAW ARR-201 ARR-201 ARR-201 ARR101W ARR301 ARR301W ARR600 ARR600 ARR600 ARR6102W ARR6102W ARR6102W ARR6102W ARR6200L ARR6200L ARR6200L ARR6200L ARR6200W ARR6200W ARR6200W ARR6200W ARR6202L ARR6202L ARR6202L ARR6202L ARR6202W ARR6202W ARR6202W ARR6202W ARR6300W ARR6300W ARR6300W ARR6300W CE11000AAV CE11000VAV0 CE35000AAT CE35000AAW CE35100AAA CE35100AAT CE35100AAW CEL1110AAH CEL1110AAT CEL1115AAH CEL1115AAQ CEL1115AAW CER1110AAH CER1110AAT CER1125AAW CER1125ACW CER1140AAQ CER1140AAW CER1160AAH CER1160AAT CER1360BGW CER3311XAW0 CER3520AAH CER3520AAT CER3525AAB CER3525AAQ CER3525AAW CES1110AAH CES1350AAH CSR6203W EHN3802L EHN3802W EHN3802W,L EHN3802W,L EHT312 EHT330 EHT3302L EHT3302W FEP310EN0 FEP310EN1 FEP310EW0 FEP310EW1 FEP310GN0 FEP310GN1 FEP310GW0 FEP310GW1 FEP310KN0 FEP310KN1 FEP310KV1 FEP310KV2 FEP310KV3 FEP310KV4 FEP310KW0 FEP310KW1 FEP310KW2 FEP310KW3 FEP310KW4 FEP310KW5 FEP310KW6 FEP310VQ0 FEP320EN0 FEP320EN1 FEP320EW0 FEP320EW1 FEP320GN0 FEP320GN1 FEP320GW0 FEP320GW1 FEP320KN0 FEP320KN1 FEP320KW0 FEP320KW1 FEP330EN0 FEP330EN1 FEP330EQ0 FEP330EQ1 FEP330EW0 FEP330EW1 FEP330GN0 FEP330GN1 FEP330GQ0 FEP330GQ1 FEP330GW0 FEP330GW1 FEP330KN0 FEP330KN1 FEP330KQ0 FEP330KQ1 FEP330KW0 FEP330KW1 FES330EN0 FES330EQ0 FES330EW0 FES330GN0 FES330GN1 FES330GQ0 FES330GQ1 FES330GW0 FES330GW1 FES330KN0 FES330KN1 FES330KQ0 FES330KQ1 FES330KW0 FES330KW1 IEP314RQ0 IEP314RQ1 IEP314RQ2 IEP315RQ0 IEP315RQ1 IER310RW0 IER310RW1 IER310RW2 IER320TW0 IER320WW0 IVE30100 LER1115AAW MEC4430ACW MER4110AAH MER5555RCB1 MER5555RCW1 N PER1125ACW PER3524ACW PER4100BAW PER4102BAH PER4102BAT PER4305BAH PER4305BAT RCS2012GS0 RCS2012GS1 RCS2012GW0 RCS2012GW1 RCS2012LS0 RCS2012LS02 RCS2012RS00 RCS2012RS01 RCS2012RS02 RCS2012RS03 RCS2012RS04 RCS2012RS06 RCS3004GN0 RCS3004GS0 RCS3004GS1 RCS3004GV0 RCS3004GV1 RCS3004GW0 RCS3004GW1 RCS3004LS0 RCS3004RS00 RCS3004RS01 RCS3004RS02 RCS3004RS03 RCS3004RS05 RF110AXSQ0 RF110AXSQ1 RF110AXSQ2 RF110AXSQ3 RF110AXST0 RF110AXST1 RF110AXST2 RF111PXSQ0 RF111PXSQ1 RF111PXSQ2 RF111PXSQ3 RF111PXSW0 RF111PXSW1 RF111PXSW2 RF111PXSW3 RF260BXSW0 RF260BXSW1 RF260BXSW2 RF301OXTW01 RF3020XEN0 RF3020XEN1 RF3020XEW0 RF3020XEW1 RF3020XGN0 RF3020XGN1 RF3020XGW0 RF3020XGW1 RF3020XKN0 RF3020XKQ0 RF3020XKQ1 RF3020XKQ2 RF3020XKQ3 RF3020XKQ4 RF3020XKT1 RF3020XKT2 RF3020XKT3 RF3020XKT4 RF3020XKW0 RF302BXEN0 RF302BXEN1 RF302BXEQ0 RF302BXEQ1 RF302BXEW0 RF302BXEW1 RF302BXGN0 RF302BXGN1 RF302BXGQ0 RF302BXGQ1 RF302BXGT1 RF302BXGV1 RF302BXGW0 RF302BXGW1 RF302BXKN0 RF302BXKQ0 RF302BXKQ1 RF302BXKQ2 RF302BXKV0 RF302BXKV1 RF302BXKV2 RF302BXKW0 RF302BXKW1 RF302BXKW2 RF303PXKQ0 RF303PXKQ1 RF303PXKQ3 RF303PXKQ4 RF303PXKT1 RF303PXKT3 RF303PXKW1 RF303PXKW3 RF303PXKW4 RF340BXHW0 RF340BXHW1 RF340BXKW0 RF340BXKW1 RF3500XEN0 RF3500XEW0 RF350BXEW0 RF350BXGW0 RF350BXGW1 RF350BXKW0 RF350PXHN0 RF350PXHN1 RF350PXHW0 RF350PXHW1 RF352BXKW0 RF352BXKW1 RF360BXEN0 RF360BXEQ0 RF360BXEW0 RF360PXEN0 RF360PXEW0 RME30000 RME30001 RME30002 RME30003 RME30100 RME30101 RME32300 RME32301 RME32302 RME32303 RS160LXTB0 RS160LXTB1 RS160LXTQ0 RS160LXTQ1 RS160LXTS0 RS160LXTS1 RS610PXGN0 RS610PXGN1 RS610PXGN2 RS610PXGN3 RS610PXGV10 RS610PXGV11 RS610PXGV2 RS610PXGV3 RS610PXGV7 RS610PXGV8 RS610PXGV9 RS610PXGW0 RS610PXGW1 RS610PXGW10 RS610PXGW11 RS610PXGW2 RS610PXGW3 RS610PXGW7 RS610PXGW8 RS610PXGW9 RS610PXHW1 RVE30100 RY160LXTB0 RY160LXTB1 RY160LXTB2 RY160LXTQ0 RY160LXTQ1 RY160LXTQ2 RY160LXTS0 RY160LXTS03 RY160LXTS3 TEP200VAQ0 TEP315KW0 TEP315KW1 TEP315RV0 TEP315RV1 TEP315RV2 TEP315RW0 TEP315RW1 TEP315RW2 TEP315TV0 TEP315TV1 TEP315TW0 TEP315TW1 TEP315VQ0 TEP315VT0 TEP325EW0 TEP325GW0 TES325EW0 TES325GW0 TES325GW1 TME30100 TME30101 TVE30100 WDE101LVQ0 WDE101LVQ01 WDE150LVB0 WDE150LVB01 WDE150LVQ0 WDE150LVQ01 WDE150LVS0 WDE150LVS01 WDE150LVT0 WDE150LVT01 WDE150LVT01C WDE151LVQ01 WDE350LVQ01 WFE114LWS0 YEL1110AAH YIER320TW0 YIER320WW0
