- ClimaTek 8" Burner Replaces Whirlpool # 0312877 0E00800799 0312875 0091801 0091795 0075356 0072980
Product Description
SPECS:

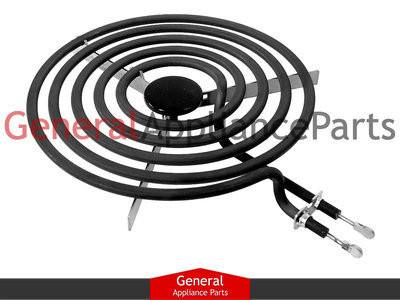

This 8" burner element has 5 turns/rings and has a Y-Frame structure to support the element. This burner element is rated at 2100 watts. The wire looped terminals have been replaced with these solid terminals. This element also replaces some flat style terminal elements.
COMPATIBLE WITH THESE BRANDS:
Whirlpool Estate KitchenAid Roper Maytag Admiral Amana Speed Queen Jenn-Air Magic Chef Crosley Caloric Glenwood Hardwick Menumaster Modern Maid Montgomery Wards Norge JC Penney Wards Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
The surface burner elements, those metal components that get red-hot and generate heat, are the most important parts of any range. When the elements fail to heat properly, it's time to replace them. It's a simple procedure any electric stove owner can easily accomplish in a few minutes' time. You can usually identify a burnt-out element by blistering or small holes on the element's coils. A burner that plugs into a receptacle is easy to test, just unplug the non-heating burner, plug it into another working receptacle, restore the power to the range, and test it. If the burner works, you know its original receptacle is probably faulty. If it doesn??t work in the good receptacle, the burner is bad and must be replaced. Do not be alarmed if a new element smokes a little when you first use it. This is a factory-applied green coating, that prevents scratches during shipment, burning away.
REPLACES PART NUMBERS:
3191454 71853 703421 7-66327 7-3421 561102 53307P01 52288P01 51903P01 51572 51572 51571 51571 5-61102 45542 42127 332-218 31734607 1938356 1938344 1938251 1938249 1938214 1938-356 1938-283 0E00802599 0E00802099 0E00800899 0E00800799 0E00800699 07683300 04000033 04000031 0312877 0312875 0091801 0091795 0075356 0072980 0072549 0071853 0051572 0051571 0051570 0050264 0050259 0045542 0042164 0042139 0042131
USED ON MODELS:
1870 1880 1990 1990.001 1995 3021 3036.A00 3072 3074 3074.A00 3090 3094 3094.A00 610 610.001 610.002 621 621.001 630 630.001 630.002 630.003 631 631.001 631.002 631.003 631.004 631.006 773 776 955 968 968.01 969 969.001 969.002 969.003 970 970.001 970.002 AC110B14 AC110W14 FDU2492B FDU2492K FDU2492WW JEA7000ADB13 JEA7000ADS13 JEA7000ADW13 JED8130ADB15 JED8130ADB16 JED8130ADW15 JED8130ADW16 KECS100GAL0 KECS100GAL1 KECS100GBL0 KECS100GBL1 KECS100GBT0 KECS100GBT1 KECS100GSS0 KECS100GSS02 KECS100GSS1 KECS100GWH0 KECS100GWH02 KECS100GWH1 KECS161GAL0 KECS161GAL1 KECS161GBL0 KECS161GBL02 KECS161GBL1 KECS161GBT0 KECS161GBT02 KECS161GBT1 KECS161GSS0 KECS161GSS02 KECS161GSS1 KECS161GWH0 KECS161GWH02 KECS161GWH1 MEC4430ACW14 MEC4436AAB10 MEC4436AAC10 MEC4436AAW10 MEC4536WB00 MEC4536WC00 MEC4536WW00 RCS3014GB0 RCS3014GB1 RCS3014GQ0 RCS3014GQ1 RCS3014GS0 RCS3014GS1 RCS3014GT0 RCS3014GT1 RCS3014GZ0 RCS3014LB0 RCS3014LS0 RCS3014LT0 RCS3014RB00 RCS3014RB01 RCS3014RB02 RCS3014RB05 RCS3014RQ00 RCS3014RQ01 RCS3014RQ02 RCS3014RQ04 RCS3014RS00 RCS3014RS01 RCS3014RS02 RCS3014RS04 RCS3014RT00 RCS3014RT01 RCS3014RT02 RCS3014RT04 RCS3514GB0 RCS3614GB0 RCS3614GB1 RCS3614GQ0 RCS3614GQ1 RCS3614GS0 RCS3614GS1 RCS3614GT0 RCS3614GT1 RCS3614GZ0 RCS3614LB0 RCS3614LQ0 RCS3614LS0 RCS3614LT0 RCS3614RB00 RCS3614RB01 RCS3614RQ00 RCS3614RQ01 RCS3614RS00 RCS3614RS01 RCS3614RT00 RCS3614RT01
