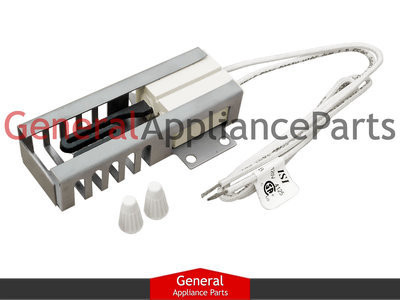

ClimaTek Gas Oven Flat Ignitor Igniter Replaces Maytag Crosley Admiral Amana # 74007498 7432P075-60

Price: $14.95

Quantity:

Product Description


SPECS:
This igniter's amperage range is 3.3 - 3.6. Used with 3.2 to 3.5 amp rated gas safety valves. Includes: high temperature stainless steel shield high temperature MGT wire leads and high temperature ceramic wire nuts to wire into original harness. Replaces long and short ignitors. Be careful not to drop your new ignitor; ignitors are fragile and will break easily.
COMPATIBLE WITH THESE BRANDS:
Whirlpool Estate KitchenAid Roper Maytag Admiral Amana Speed Queen Jenn-Air Magic Chef Crosley Caloric Glenwood Hardwick Menumaster Modern Maid Montgomery Wards Norge JC Penney Wards Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
The oven igniter, also called a glow bar, heats up the bimetal switch and causes the oven to ignite the gas fed to the burners. A common issue when the oven fails to ignite is a faulty glow bar. If the oven does not start within 90 seconds, the glow bar is likely the issue. Do not be fooled if the glow bar turns red. If it does not reach the appropriate temperature, the oven will not light. If your ignitor uses a connector on the end, reuse the connector from the old ignitor. Use your wire cutters to cut the wires on the old ignitor several inches above the connector. Strip the ends of the wires with a wire stripper. Place the end of a wire on the connector next to the end of a wire on your new ignitor. Use a ceramic wire nut to twist and hold the wires together. Your wires are not color coded, so it does not matter which wires are connected together. Your old ignitor can get very hot even if it doesn't ignite the burner tube.
REPLACES PART NUMBERS:
74007498 7432P075-60
USED ON MODELS:
31001PAT 31001SAT 31203PAQ 9112WUT A31713XATL AGR4400ADW AGR4412ADB AGR4412ADQ AGR4412ADS AGR4412ADW AGR5712ADB AGR5712ADQ AGR5712ADS AGR5712ADW AGR5712ADZ AGR5712BDB AGR5712BDQ AGR5712BDW AGR5712BDZ AGR5715QDB AGR5715QDQ AGR5715QDS AGR5715QDW AGR5725QDB AGR5725QDQ AGR5725QDS AGR5725QDW AGR5725RDB AGR5725RDB12 AGR5725RDB13 AGR5725RDB14 AGR5725RDB15 AGR5725RDB16 AGR5725RDQ AGR5725RDQ12 AGR5725RDQ13 AGR5725RDQ14 AGR5725RDQ15 AGR5725RDQ16 AGR5725RDS AGR5725RDS16 AGR5725RDW AGR5725RDW12 AGR5725RDW13 AGR5725RDW14 AGR5725RDW15 AGR5725RDW16 AGR5735QDB AGR5735QDQ AGR5735QDS AGR5735QDW AGR5825RDB AGR5825RDS AGR5825RDW AGR5835QDB AGR5835QDQ AGR5835QDS AGR5835QDW AGS1740BDQ AGS1740BDW AGS3760BDB AGS3760BDQ AGS3760BDS AGS3760BDW AGS5730BDB AGS5730BDQ AGS5730BDS AGS5730BDW ALR1420BDQ ALR1420BDW ALR1450AJW ALR1450BJW ALR5715QDS ALR5715QDW C31103SAT C31113WAB C31113WAT C31113WATP C31113XAT C31315VBQ C31315XBT C31315XBW CBR1415AGS CBR1415AGW CBR1420BGW CBR1430BGH CG31400ADW CG31600ADB CG31600ADQ CG31600ADV CG34300ADT CG34700ADQ CG34700BDQ CG34700BDT CG34700BDV CG34700BDW CG34800ADQ CG34800ADS CG34800ADT CG34800ADV CG34800ADW CG34800BDS CGL1100ADQ CGL1100ADW CGR1110ADQ CGR1110ADW CGR1320BDH CGR1320BDW CGR1330BDC CGR1330BDH CGR1330BDT CGR1415ADH CGR1420BDQ CGR1420BDW CGR1425ADH CGR1425ADQ CGR1425ADS CGR1425ADT CGR1425ADW CGR1430BDH CGR1430BDT CGR3520BDH CGR3520BDT CGR3725ADB CGR3725ADQ CGR3725ADS CGR3725ADW CGR3726ADW CGR3730ADH CGR3730ADT CGR3740BDH CGR3740BDT CGR3740BDW CGR3742BDC CGR3742BDQ CGR3742BDW CGR3742CDC CGR3742CDH CGR3742CDQ CGR3742CDT CGR3742CDW CGR3760BDB CGR3760BDQ CGR3760BDW CGR3765BDC CGS1230ADH CGS1230ADL CGS1230ADT CGS1740ADH CGS1740ADL CGS1740ADT CGS3760ADA CGS3760ADB CGS3760ADC CGS3760ADQ CGS3760ADW CLL1101ADW CP31600ADQ CP31600ADV CWG3100AAB25 CWG3100AAE29 CWG3100AAS CWG3100AAS13 CWG3600AAB26 CWG3600AAS CWG3600AAS13 D31113XATL DCF3305BK DCF3305BT DCF3315AC DCF3315AW DF251300 DF251366 GM3111GXAW GM31211XAW GW397LXUB0 GW397LXUB1 GW397LXUB5 GW397LXUQ0 GW397LXUQ06 GW397LXUQ1 GW397LXUQ6 GW397LXUS0 GW397LXUS1 GW397LXUS5 GW397LXUT0 GW397LXUT06 GW397LXUT1 GW397LXUT5 GW399LXUB0 GW399LXUB05 GW399LXUB1 GW399LXUB5 GW399LXUQ0 GW399LXUQ06 GW399LXUQ1 GW399LXUQ6 GW399LXUS0 GW399LXUS04 GW399LXUS05 GW399LXUS1 GW399LXUS4 ISG650VS12 ISG650WS00 JGR8730ADQ JGR8730ADW JGR8750ADQ JGR8750BDB JGR8750BDQ JGR8750BDW JGR8775QDB JGR8775QDQ JGR8775QDS JGR8775QDW JGR8775RDB JGR8775RDS JGR8775RDW JGR8850ADQ JGR8850BDB JGR8850BDQ JGR8850BDW JGR8855BDS JGR8875QDB JGR8875QDS JGR8875QDW JGR8875RDB JGR8875RDB1 JGR8875RDS JGR8875RDS1 JGR8875RDW JGR8875RDW1 JGR8885RDP JGS8750ADB JGS8750ADS JGS8750ADW JGS8750BDB JGS8750BDB16 JGS8750BDS JGS8750BDS17 JGS8750BDW JGS8750BDW16 JGS8750CDS01 JGS8850ADB JGS8850ADQ JGS8850ADS JGS8850ADW JGS8850BDB JGS8850BDQ JGS8850BDS JGS8850BDS17 JGS8850BDW JGS8860BDP JGS8860BDP17 JGW8130DDB JGW8130DDB12 JGW8130DDB12 JGW8130DDB15 JGW8130DDW JGW8130DDW12 JGW8130DDW12 JGW8130DDW15 KGRK201TBL0 KGRK201TSS0 KGRK201TWH0 KGRS205TBL0 KGRS205TBL2 KGRS205TBL4 KGRS205TBL5 KGRS205TBT0 KGRS205TSS0 KGRS205TSS2 KGRS205TSS4 KGRS205TSS5 KGRS205TWH0 KGRS205TWH2 KGRS205TWH4 KGRS205TWH5 LBR1415AGS LBR1415AGW LGR3330ADB LGR3330ADW LGR3330ADZ LGR3725ADC LLR1415AJS LLR1415AJW LLR4451AJS LLR4451AJW MBR1415AGS MBR1415AGW MBR4450BGH MBR4450BGW MBR4450CGH MBR5730BGW MGR1320BDW MGR4220ADW MGR4410BDA MGR4410BDQ MGR4410BDW MGR4411BDQ MGR4411BDW MGR4450BDA MGR4450BDQ MGR4450BDW MGR4451ADB MGR4451ADQ MGR4451ADS MGR4451ADW MGR4451BDB MGR4451BDQ MGR4451BDS MGR4451BDW MGR4452ADB MGR4452ADQ MGR4452ADS MGR4452ADW MGR4452BDB MGR4452BDQ MGR4452BDS MGR4452BDW MGR5710ADQ MGR5710ADW MGR5720ADT MGR5720BDQ MGR5720BDW MGR5721BDQ MGR5721BDW MGR5729ADQ MGR5729ADT MGR5730ADQ MGR5730BDB MGR5730BDQ MGR5730BDW MGR5750ADQ MGR5750BDB MGR5750BDQ MGR5750BDW MGR5751ADB MGR5751ADQ MGR5751ADS MGR5751ADW MGR5751BDB MGR5751BDQ MGR5751BDS MGR5751BDS18 MGR5751BDW MGR5752ADB MGR5752ADQ MGR5752ADS MGR5752ADW MGR5752BDB MGR5752BDQ MGR5752BDS MGR5752BDW MGR5754QDQ MGR5754QDS MGR5754QDW MGR5755ADB MGR5755ADQ MGR5755ADW MGR5755BDB MGR5755BDQ MGR5755BDW MGR5755QDB MGR5755QDQ MGR5755QDS MGR5755QDW MGR5765QDB MGR5765QDB1 MGR5765QDB2 MGR5765QDQ MGR5765QDQ1 MGR5765QDQ2 MGR5765QDS1 MGR5765QDS2 MGR5765QDW MGR5765QDW1 MGR5765QDW2 MGR5770BDB MGR5770BDQ MGR5770BDW MGR5775ADB MGR5775ADQ MGR5775ADW MGR5775QDB MGR5775QDB1 MGR5775QDQ MGR5775QDQ1 MGR5775QDS MGR5775QDS1 MGR5775QDW MGR5775QDW1 MGR5780BDB MGR5780BDQ MGR5780BDS MGR5780BDW MGR5870ADQ MGR5870BDB MGR5870BDQ MGR5870BDW MGR5875QDB MGR5875QDB1 MGR5875QDQ MGR5875QDQ1 MGR5875QDS MGR5875QDS1 MGR5875QDW MGR5875QDW1 MGR5880BDB MGR5880BDQ MGR5880BDS MGR5880BDW MGR8670WB0 MGR8670WB1 MGR8670WQ0 MGR8670WQ1 MGR8670WS0 MGR8670WS1 MGR8670WW0 MGR8670WW1 MGR8772WB0 MGR8772WS0 MGR8772WW0 MGR8875WB0 MGR8875WB1 MGR8875WS0 MGR8875WS1 MGR8875WW0 MGR8875WW1 MGRH752BDB MGRH752BDQ MGRH752BDS MGRH752BDW MGRH752CDS MGRH865QDB0 MGRH865QDB1 MGRH865QDB10 MGRH865QDB11 MGRH865QDB12 MGRH865QDB12 MGRH865QDB13 MGRH865QDQ0 MGRH865QDQ1 MGRH865QDQ10 MGRH865QDQ11 MGRH865QDQ12 MGRH865QDQ12 MGRH865QDQ13 MGRH865QDS0 MGRH865QDS1 MGRH865QDS10 MGRH865QDS11 MGRH865QDS12 MGRH865QDS14 MGRH865QDW0 MGRH865QDW1 MGRH865QDW10 MGRH865QDW11 MGRH865QDW12 MGRH865QDW12 MGRH865QDW13 MGRL752BDB MGRL752BDB14 MGRL752BDQ MGRL752BDQ14 MGRL752BDW MGRL752BDW14 MGRL753BDS MGRM752BDB MGRM752BDQ MGRM752BDS MGRM752BDW MGRS752BDB MGRS752BDQ MGRS752BDS MGRS752BDW MGS5752BDB MGS5752BDB19 MGS5752BDS MGS5752BDS20 MGS5752BDW MGS5752BDW19 MGS5770ADA MGS5770ADB MGS5770ADC MGS5770ADQ MGS5770ADW MGS5775BDB MGS5775BDB20 MGS5775BDQ MGS5775BDQ20 MGS5775BDS MGS5775BDS21 MGS5775BDW MGS5775BDW19 MGS5870ADA MGS5870ADB MGS5870ADC MGS5870ADQ MGS5870ADW MGS5875BDB MGS5875BDQ MGS5875BDS MGS5875BDS21 MGS5875BDW MLR1110AJQ MLR1110AJW MLR1415AJQ MLR1415AJS MLR1415AJW MLR4410BXH MLR4410BXL MLR4410BXT MLR4410CXH MLR4410CXT MLR4451AJQ MLR4451AJS MLR4451AJW MLR5755QDS MLR5755QDW PGR4102CDH PGR4102CDT PGR4202BDH PGR4202BDT PGR4305CDH PGR4305CDT PGR4310CDQ PGR4310CDW PGR4405CDH PGR4405CDS PGR4405CDT PGR4409ADH PGR4410ADQ PGR4410ADW PGR4410BDQ PGR4410BDW PGR4410CDQ PGR4410CDW PGR4420LDQ PGR4420LDW PGR5702BDH PGR5702BDT PGR5705BDH PGR5705BDT PGR5710BDC PGR5710BDQ PGR5710BDW PGR5715BDQ PGR5715BDW PGR5720LDQ PGR5720LDW PGR5750LDQ PGR5750LDS PGR5750LDW PGS3759BDB PGS3759BDS PGS3759BDW RGSF3330DW RGSF5330DT
