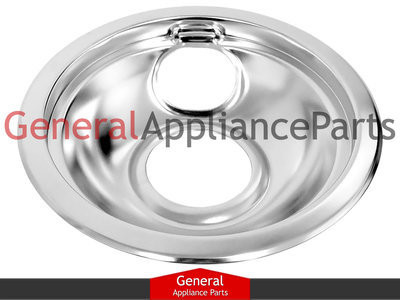

- OEM Stove Range Cooktop 6" Burner Chrome Drip Bowl Replaces GE Hotpoint Kenmore # WB31X5010
Product Description
SPECS:
Range/Cooktop/Stove Chrome drip bowl. 7.5" in diameter. 1.75" height. Center hole measures 2.25" in diameter.
COMPATIBLE WITH THESE BRANDS:
GE General Electric Hotpoint RCA Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
Drip bowls have a purpose beyond looking attractive. Drip bowls capture and reflect heat back to the coil which makes the burner work more efficiently. Drip bowls also catch spills that otherwise would drip down into the internal workings of the stove and can prevent electric shock to the user. With regular use, drip bowls do become discolored with time and may have to be replaced. Helpful Note: Aluminum foil is not a safe alternative for a drip pan. The heat beneath a range top element can reach upwards of 1000 degrees F which can ignite the aluminum foil, damage the range top and put you at risk for injury.
REPLACES PART NUMBERS:
WB31X5010
USED ON MODELS:
3639308810 3639378810 3639378880 3639858810 3639858911 3639868810 3639878810 3639878911 3639888810 JB390G*H1 JB500*D1 JB500*D2 JB500*D3 JB500*W4 JB500*W5 JB500*W6 JB500G*B1 JB500G*D1 JB500G*D2 JB500G*D3 JB500G*W4 JB500G*W5 JB500G*W6 JB600G*04 JB600G*05 JB600G*C1 JB600G*D1 JB600G*D2 JB600G*D3 JBC26*07 JBC26*55 JBC26*F1 JBC26*F2 JBP23*01 JBP23*F1 JBP23*F2 JBP24G*04 JBP24G*05 JBP24G*F1 JBP24G*F2 JBP26*D1 JBP26*F1 JBP26*F2 JBP26*W5 JBP26G*F1 JBP36G*W4 JBP36G*W5 JBS26*07 JBS26*55 JBS26*F1 JBS26*F2 JBS26G*F1 JBV42G*01 JBV42G*02 JBV42G*03 JCP68*W2 JCP68*W3 JCP68*W4 JHC56*D1 JHC56*VA JHC56*VB JHC56G*D1 JHP56*D1 JHP56*V8 JHP56*VA JHP56G*C1 JHP56G*D1 JHP56G*D2 JHP56G*V6 JHP60G*01 JHP60G*02 JHP60G*03 JHP65G*01 JHP65G*02 JHP65G*D1 JHP66G*01 JHP66G*02 JHP67G*D1 JHP67G*D2 JHP67G*V5 JHP68G*01 JHP97G*D1 JHP97G*Y2 JHP97G*Y3 JHP97G*Y5 JHP97G*Y6 JP300N1 JP300N2 JP300N3AD JP300N3HA JP300N3WH JP301BN1 JP301BN2 JP310N1 JP310N2 JP311BN1 JP311BN3BC JP325R1WH JP656*C2 JP656*C3 JP6560C3 JP656B*C1 JP656B*C2 JP656B*C3 JP656B0C3 JP661*C1 JP661*C2 JP661*C3 JP6610C3 JP661B*C1 JP661B*C2 JP661B*C3 JP661B0C3 JSP48G*01 JSP48G*H1 JSP48G*H2 JSP48G*J1 JSP48G*J2 JSP48G*J3 JSP48G*J4 JSP48G*J5 JSP48G*J6 JSP48G*J7 JSP48G*J8 JSP48GJ4 JSP48GJ5 JSP48GJ6 JSP48GJ7 JSP48GJ8 JSP49G101 JSP49G1H1 JSP49G1H2 JSP49G1J1 JSP49G1J2 JSP49G1J3 JSP49G1J4 JSP49G1J5 JSP49G1J6 JSP49G1J7 JSP49G1J8 RB536*F1 RB536*F2 RB636*F1 RB636*F2 RB658*A1 RB658*A2 RB658*A3 RB735G*A1 RB735G*A2 RB735G*A3 RB735G*A4 RB735G*A5 RB737*A2 RB737*A3 RB737*A4 RB737*A5 RB737*D1 RB737*D2 RB737G*D1 RB747*A2 RB747*A3 RB747*A4 RB747*A5 RB747*D1 RB747*D2 RB747G*A5 RB747G*D1 RB747G*D2 RB942G*01 RB942G*02 RC777*W2 RH758*V8 RH758*V9 RH758G*D1 RH758G*D2 RH960G*01 RH960G*02 RH960G*03 RH966G*D1 RH966G*Y2 RH966G*Y3 RH966G*Y4 RH966G*Y5 RH966G*Y6 RH967G*01 RH967G*D1 RS776G*01 RS778G*01 RS778G*H1 RS778G*H2 RS778G*J1 RS778G*J2 RS778G*J3 RS778G*J4 RS778G*J5 RS778G*J6 RS778G*J7 RS778G*J8 RS779G101 RS779G1H1 RS779G1H2 RS779G1J1 RS779G1J2 RS779G1J3 RS779G1J4 RS779G1J5 RS779G1J6 RS779G1J7 RS779G1J8 RU38*C1 RU38*C2 RU38*C3 RU380C3 RU38B*C1 RU38B*C2 RU38B*C3 RU38B0C3
