SPECS:

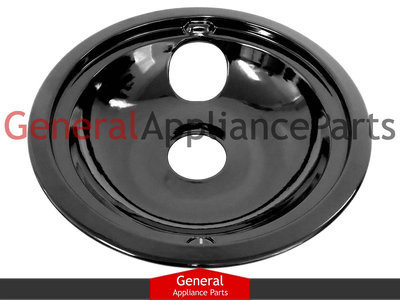

Range/Cooktop/Stove black porcelain drip bowl. 9.75" in diameter. 1.75" height. Center hole measures 1.75" in diameter.
COMPATIBLE WITH THESE BRANDS:
GE General Electric Hotpoint RCA Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
Drip bowls have a purpose beyond looking attractive. Drip bowls capture and reflect heat back to the coil which makes the burner work more efficiently. Drip bowls also catch spills that otherwise would drip down into the internal workings of the stove and can prevent electric shock to the user. With regular use, drip bowls do become discolored with time and may have to be replaced. Helpful Note: Aluminum foil is not a safe alternative for a drip pan. The heat beneath a range top element can reach upwards of 1000 degrees F which can ignite the aluminum foil, damage the range top and put you at risk for injury.
REPLACES PART NUMBERS:
WB31M19 WB31M0019
USED ON MODELS:
3634272790 JBP26BY1 JBP30BA1 JBP30GY1AD JBP30GY1AW JBP30GY1WH JBP45WW1 JBP48AA1 JBP48AY1 JCSP28GT1BB JCSP28GT2BB JCSP28GV1BB JCSP28GV2BB JCSP31BW1BB JHP56GN1 JHP56GN2 JHP56GN3AD JHP56GN3WH JHP56GN4AD JHP56GN4WH JHP56GN5AD JHP56GN5WH JHP56GN6AD JHP56GN6WH JHP56GN7AD JHP56GN7WH JHP62GN1 JHP62GN2 JHP62GN3AD JHP62GN3WH JHP62GN4AD JHP62GN4WH JHP62GN5AD JHP62GN5WH JHP62GN6AD JHP62GN6WH JHP63GN1 JHP63GN2 JHP63GN3AD JHP63GN3WH JHP63GN4AD JHP63GN4WH JHP63GN5AD JHP63GN5WH JHP69GN1 JHP69GN2 JHP69GN3AD JHP69GN3WH JHP69GN4AD JHP69GN4WH JHP70GN1 JHP70GN2 JHP70GN3AD JHP70GN3WH JHP70GN4AD JHP70GN4WH JHP70GN5AD JHP70GN5WH JMP28GR1AD JMP28GR1WH JMP28GR2AD JMP28GR2WH JMP28GR3AD JMP28GR3WH JMP28GT1AD JMP28GT1WH JMP28GV1AD JMP28GV1WH JMP29GR1BK JMP29GR2BK JMP29GR3BK JMP29GT1BB JMP29GV1BB JMP2SGR3WH JP300R1 JP300R2BL JP326BV1BB JSP26BW1AD JSP26BW1WH JSP26GP2AD JSP26GP2WH JSP26GP3AD JSP26GP3WH JSP26GP4AD JSP26GP4WH JSP26GT1AD JSP26GT1WH JSP26GV1AD JSP26GV1WH JSP28GT1BB JSP28GV1BB JSP28GV2BB JSP34AV1AA JSP34AW1AA JSP34BW1BB RB755GN1 RB755GN2 RB755GN3 RB755GN4AD RB755GN4WH RB755GN5AD RB755GN5WH RB755GN6AD RB755GN6WH RB755GT1AD RB755GT1WH RB755GT2AD RB755GT2WH RB755GT3AD RB755GT3WH RB755GT4AD RB755GT4WH RB757GN1 RB757GN2 RB757GN3 RB757GN4AD RB757GN4WH RB757GN5AD RB757GN5WH RB757GN6AD RB757GN6WH RB757GT1AD RB757GT1WH RB757GT2AD RB757GT2WH RB757GT3AD RB757GT3WH RB757GT4AD RB757GT4WH RB757WT4WW RB767GN1 RB767GN2 RB767GN3 RB767GN4AD RB767GN4WH RB767GN5AD RB767GN5WH RB768GN1
