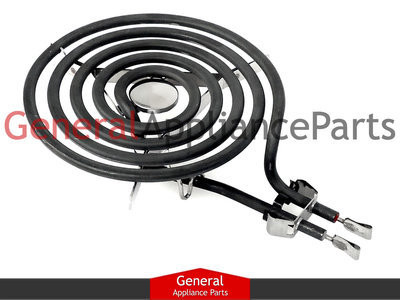

- ClimaTek Range Stove 6" Heating Element Replaces GE Hotpoint Kenmore # WB30X218 WB30X218R WB30X0218
Product Description
SPECS:
This 6" burner element has 5 turns/rings and has a Y-Frame structure to support the element. This burner element is rated at 1325 watts. Used with ceramic terminal receptacle blocks.
COMPATIBLE WITH THESE BRANDS:
GE General Electric Hotpoint JC Penny Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
The surface burner elements, those metal components that get red-hot and generate heat, are the most important parts of any range. When the elements fail to heat properly, it's time to replace them. It's a simple procedure any electric stove owner can easily accomplish in a few minutes' time. You can usually identify a burnt-out element by blistering or small holes on the element's coils. A burner that plugs into a receptacle is easy to test, just unplug the non-heating burner, plug it into another working receptacle, restore the power to the range, and test it. If the burner works, you know its original receptacle is probably faulty. If it doesn??t work in the good receptacle, the burner is bad and must be replaced. Do not be alarmed if a new element smokes a little when you first use it. This is a factory-applied green coating, that prevents scratches during shipment, burning away.
REPLACES PART NUMBERS:
WB30X218 WB30X218R WB30X0218
USED ON MODELS:
J765*01 J765*03 JB400G*H1 JB400G*H2 JB500*D1 JB500*D2 JB500*D3 JB500*D4 JB500*W4 JB500*W5 JB500*W6 JB500G*B1 JB500G*D1 JB500G*D2 JB500G*D3 JB500G*D4 JB500G*D5 JB500G*H1 JB500G*H2 JB500G*W4 JB500G*W5 JB500G*W6 JB600G*04 JB600G*05 JB600G*C1 JB600G*D1 JB600G*D2 JB600G*D3 JB600G*D4 JB600G*H1 JBC26*07 JBC26*55 JBC26*F1 JBC26*F2 JBC26*F3 JBP23*01 JBP23*F1 JBP23*F2 JBP23*F3 JBP24G*04 JBP24G*05 JBP24G*F1 JBP24G*F2 JBP24G*F3 JBP24G*H1 JBP26*D1 JBP26*F1 JBP26*F2 JBP26*F3 JBP26*W5 JBP26G*F1 JBP26G*F2 JBP26G*H1 JBP36G*W4 JBP36G*W5 JBS26*07 JBS26*55 JBS26*F1 JBS26*F2 JBS26*F3 JBS26G*F1 JBS26G*F2 JBS26G*H1 JBV42G*01 JBV42G*02 JBV42G*03 JBV42G*04 JBV42G*H1 JCP68*W2 JCP68*W3 JCP68*W4 JHC56*D1 JHC56*VA JHC56*VB JHC56G*D1 JHC56G*D2 JHP56*D1 JHP56*VA JHP56G*C1 JHP56G*D1 JHP56G*D2 JHP56G*D3 JHP56G*H1 JHP56G*V6 JHP60G*01 JHP60G*02 JHP60G*03 JHP60G*04 JHP65G*01 JHP65G*02 JHP65G*D1 JHP66G*01 JHP66G*02 JHP67G*D1 JHP67G*D2 JHP67G*D3 JHP67G*H1 JHP67G*V5 JHP68G*01 JHP68G*02 JHP97G*D1 JHP97G*Y2 JHP97G*Y3 JHP97G*Y5 JHP97G*Y6 JP656*C1 JP656B*C1 JP661*C1 JP661B*C1 JSP48G*01 JSP48G*H1 JSP48G*H2 JSP48G*J1 JSP48G*J2 JSP48G*J3 JSP48G*J4 JSP48G*J5 JSP48G*J6 JSP48G*J7 JSP48G*J8 JSP48GJ4 JSP48GJ5 JSP48GJ6 JSP48GJ7 JSP48GJ8 JSP49G101 JSP49G1H1 JSP49G1H2 JSP49G1J1 JSP49G1J2 JSP49G1J3 JSP49G1J4 JSP49G1J5 JSP49G1J6 JSP49G1J7 JSP49G1J8 RB536*F1 RB536*F2 RB536*F3 RB636*01 RB636*02 RB636*03 RB636*F1 RB636*F2 RB636*F3 RB658*A1 RB658*A2 RB658*A3 RB735G*A1 RB735G*A2 RB735G*A3 RB735G*A4 RB735G*A5 RB735G*A6 RB735G*H1 RB737*A2 RB737*A3 RB737*A4 RB737*A5 RB737*D1 RB737*D2 RB737*D3 RB737G*D1 RB747*A2 RB747*A3 RB747*A4 RB747*A5 RB747*D1 RB747*D2 RB747*D3 RB747G*A2 RB747G*A3 RB747G*A4 RB747G*A5 RB747G*D1 RB747G*D2 RB747G*D3 RB747G*H1 RB942G*01 RB942G*02 RC777*W2 RC777*W3 RF764*04 RF764*05 RH758*V8 RH758*V9 RH758G*D1 RH758G*D2 RH758G*D3 RH758G*H1 RH960G*01 RH960G*02 RH960G*03 RH960G*04 RH961G*H1 RH966G*D1 RH966G*Y2 RH966G*Y3 RH966G*Y4 RH966G*Y5 RH966G*Y6 RH967G*01 RH967G*D1 RS776G*01 RS778G*01 RS778G*H1 RS778G*H2 RS778G*J1 RS778G*J2 RS778G*J3 RS778G*J4 RS778G*J5 RS778G*J6 RS778G*J7 RS778G*J8 RS779G101 RS779G1H1 RS779G1H2 RS779G1J1 RS779G1J2 RS779G1J3 RS779G1J4 RS779G1J5 RS779G1J6 RS779G1J7 RS779G1J8 RU38*C1 RU38B*C1
