SPECS:

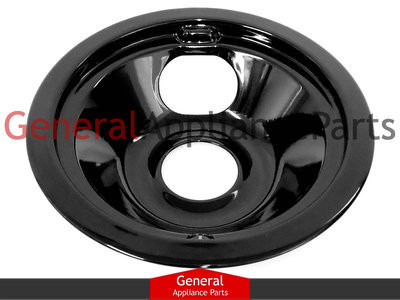

Range/Cooktop/Stove black porcelain drip bowl. 7.625" in diameter. 1.75" height. Center hole measures 1.75" in diameter.
COMPATIBLE WITH THESE BRANDS:
GE General Electric Hotpoint RCA Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
Drip bowls have a purpose beyond looking attractive. Drip bowls capture and reflect heat back to the coil which makes the burner work more efficiently. Drip bowls also catch spills that otherwise would drip down into the internal workings of the stove and can prevent electric shock to the user. With regular use, drip bowls do become discolored with time and may have to be replaced. Helpful Note: Aluminum foil is not a safe alternative for a drip pan. The heat beneath a range top element can reach upwards of 1000 degrees F which can ignite the aluminum foil, damage the range top and put you at risk for injury.
REPLACES PART NUMBERS:
WB32X5070
USED ON MODELS:
3634272790 JB450G*P1 JB450G*P2 JB450GP1 JB550G*P1 JB550G*P2 JB550GP1 JBC17G*R2 JBP24G*P1 JBP24G*P2 JBP24G*R1 JBP24G*R2 JBP24G*R3 JBP24GP1 JBP25G*R2 JBP26A*P1 JBP26A*P2 JBP26A*R1 JBP26A*R2 JBP26AP1 JBP26G*P1 JBP26G*P2 JBP26G*R1 JBP26G*R2 JBP26G*R3 JBP26GP1 JBP26W*P1 JBP26W*P2 JBP26W*R1 JBP26W*R2 JBP26WP1 JBP27G*R1 JBP27G*R2 JBP27G*R3 JBP28G*R2 JBP45AS1 JBP45G*R1 JBP45G*R2 JBP45GS1 JBP45WS1 JBP48GS1 JBP55G*R1 JBP55G*R2 JBP55G*R3 JBS03*R2 JBS03G*R2 JBS03G*R33 JBS06*R2 JBS06G*R2 JBS16*R2 JBS16G*R2 JBS17G*R1 JBS27G*R1 JBS27G*R2 JBS27G*R3 JBS27G*R33 JBS27GS1 JP383B9R1BC JP3849R1BL JP3859R1WH RB524*R2
