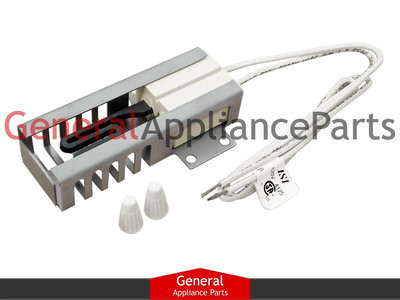

ClimaTek Flat Oven Ignitor Igniter Replaces GE # WB2X4752 WB2X4221 WB02X4752 WB02X4306 WB02X4221

Price: $14.95

Quantity:

Product Description


SPECS:
This igniter's amperage range is 3.3 - 3.6. Used with 3.2 to 3.5 amp rated gas safety valves. Includes: high temperature stainless steel shield high temperature MGT wire leads and high temperature ceramic wire nuts to wire into original harness. Replaces long and short ignitors. Be careful not to drop your new ignitor; ignitors are fragile and will break easily.
COMPATIBLE WITH THESE BRANDS:
GE General Electric Hotpoint RCA Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
The oven igniter, also called a glow bar, heats up the bimetal switch and causes the oven to ignite the gas fed to the burners. A common issue when the oven fails to ignite is a faulty glow bar. If the oven does not start within 90 seconds, the glow bar is likely the issue. Do not be fooled if the glow bar turns red. If it does not reach the appropriate temperature, the oven will not light. If your ignitor uses a connector on the end, reuse the connector from the old ignitor. Use your wire cutters to cut the wires on the old ignitor several inches above the connector. Strip the ends of the wires with a wire stripper. Place the end of a wire on the connector next to the end of a wire on your new ignitor. Use a ceramic wire nut to twist and hold the wires together. Your wires are not color coded, so it does not matter which wires are connected together. Your old ignitor can get very hot even if it doesn't ignite the burner tube.
REPLACES PART NUMBERS:
WB2X4306 WB2X4752 WB2X4221 WB02X4752 WB02X4306 WB02X4221
USED ON MODELS:
JGBC16GEH1 JGBC16GEH4 JGBC17GEH1 JGBP24GEH1 JGBP24GEH2 JGBP24GEH3 JGBP24GEJ1 JGBP24GEJ2 JGBP24GEJ3 JGBP24GEJ4 JGBP24GEJ5 JGBP24GEJ6 JGBP24GEJ7 JGBP24GEJ8 JGBP24GEJ9 JGBP24GEJA JGBP26GEH1 JGBP26GEH2 JGBP26GEH3 JGBP26GEJ1 JGBP26GEJ2 JGBP26GEJ3 JGBP26GEJ4 JGBP26GEJ5 JGBP26GEJ6 JGBP26GEJ7 JGBP26GEJ8 JGBP26GEJ9 JGBP26GEJA JGBP27GEH1 JGBP27GEH2 JGBP27GEH3 JGBP27GEJ1 JGBP27GEJ2 JGBP27GEJ3 JGBP27GEJ4 JGBP27GEJ5 JGBP28GEJ1 JGBP28GEJ2 JGBP28GEJ3 JGBP28GEJ4 JGBP28GEJ5 JGBP28GEJ6 JGBS16EH1 JGBS16GEH1 JGBS18GEJ1 JGBS18GEJ2 JGBS18GEJ3 JGBS18GEJ4 JGBS18GEJ5 JGBS18GEJ6 JGBS18GEJ7 JGCC58EH1 JGCC58EH2 JGCC58EH3 JGHC60GEH1 JGHC66GEH1 JGHP57GEJ1 JGHP57GEJ10 JGHP57GEJ2 JGHP57GEJ3 JGHP57GEJ4 JGHP57GEJ5 JGHP57GEJ6 JGHP57GEJ7 JGHP57GEJ8 JGHP57GEJ9 JGHP57GEJB JGHP57GEJC JGHP57GEJD JGHP57GEJE JGHP57GEJF JGHP57GEJG JGHP66GEH1 JGHP66GEH2 JGHP66GEH3 JGHP66GEJ1 JGHP66GEJ10 JGHP66GEJ2 JGHP66GEJ3 JGHP66GEJ4 JGHP66GEJ5 JGHP66GEJ6 JGHP66GEJ7 JGHP66GEJ8 JGHP66GEJ9 JGKC15GEH1 JGKC16GEH1 JGSS03EH1 RGB744GEH1 RGB744GEH2 RGB744GEH3 RGB744GEJ1 RGB744GEJ2 RGB744GEJ3 RGB744GEJ4 RGB744GEJ5 RGB744GEJ6 RGB744GEJ7 RGB744GEJ8 RGB744GEJ9 RGB744GEJA RGB745GEH1 RGB746GEJ1 RGB746GEJ2 RGB746GEJ3 RGB746GEJ4 RGB746GEJ5 RGB746GEJ6 RGB746GEJ7 RGB746GEJ8 RGB746GEJ9 RGB746GEJA RGC657EH1 RGC657EH2 RGH647GEH1 RGH647GEH3 RGH846GEH1 RGH946GEH1 RGH946GEH2 RGH946GEH3 RGH946GEJ1 RGH946GEJ2 RGH946GEJ3 RGH946GEJ4 RGH946GEJ5 RGH946GEJ6 RGH946GEJ7 RGH946GEJ8 RGJ515GEH1 RGJ515GEH2 RGJ616GEH1 RGJ616GEH2
