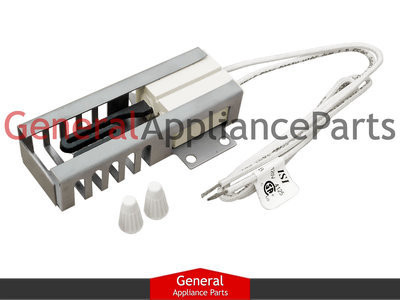

ClimaTek Flat Ignitor Igniter Replaces Frigidaire Tappan White Westinghouse # 316T023P05 316T023P01

Price: $14.95

Quantity:

Product Description


SPECS:
This igniter's amperage range is 3.3 - 3.6. Used with 3.2 to 3.5 amp rated gas safety valves. Includes: high temperature stainless steel shield high temperature MGT wire leads and high temperature ceramic wire nuts to wire into original harness. Replaces long and short ignitors. Be careful not to drop your new ignitor; ignitors are fragile and will break easily.
COMPATIBLE WITH THESE BRANDS:
Frigidaire Electrolux Franklin Gibson White-Westinghouse Westinghouse Tappan Kelvinator Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
The oven igniter, also called a glow bar, heats up the bimetal switch and causes the oven to ignite the gas fed to the burners. A common issue when the oven fails to ignite is a faulty glow bar. If the oven does not start within 90 seconds, the glow bar is likely the issue. Do not be fooled if the glow bar turns red. If it does not reach the appropriate temperature, the oven will not light. If your ignitor uses a connector on the end, reuse the connector from the old ignitor. Use your wire cutters to cut the wires on the old ignitor several inches above the connector. Strip the ends of the wires with a wire stripper. Place the end of a wire on the connector next to the end of a wire on your new ignitor. Use a ceramic wire nut to twist and hold the wires together. Your wires are not color coded, so it does not matter which wires are connected together. Your old ignitor can get very hot even if it doesn't ignite the burner tube.
REPLACES PART NUMBERS:
316T023P05 316T023P01
USED ON MODELS:
12-1063-00-04 12-1063-00-05 12-1063-23-04 12-1063-23-05 12-1063-45-04 12-1063-45-05 12-1063-57-04 12-1063-57-05 12-1063-66-04 12-1063-66-05 12-1263-00-01 12-1263-23-01 12-1263-45-01 12-1263-57-01 12-1263-66-01 12-1663-00-01 12-1663-23-01 12-1663-45-01 12-1663-57-01 12-1663-66-01 12-3219-00-01 12-3699-00-01 12-3699-00-04 12-3699-00-05 12-3883-00-01 12-3883-23-01 12-3883-45-01 12-3883-57-01 12-3883-66-01 12-3893-00-01 12-3893-23-01 12-3893-45-01 12-3893-57-01 12-3893-66-01 12-5063-00-04 12-5063-00-05 12-5063-23-04 12-5063-23-05 12-5063-45-04 12-5063-45-05 12-5063-57-04 12-5063-57-05 12-5063-66-04 12-5063-66-05 12-6219-00-01 12-6263-00-01 12-6263-23-01 12-6263-45-01 12-6263-57-01 12-6263-66-01 12-6663-00-01 12-6663-23-01 12-6663-45-01 12-6663-57-01 12-6663-66-01 30-2246-00-01 30-2246-00-02 30-2246-00-03 30-2246-00-04 30-3036-00-01 30-3036-00-04 30-3036-23-01 30-3036-23-04 30-3236-23-02 32-1012-00-01 32-1012-00-03 32-1012-00-04 32-1012-00-05 32-1012-00-06 32-1012-00-07 32-1012-00-08 32-1012-00-09 32-1012-00-13 32-1012-23-01 32-1012-23-03 32-1012-23-04 32-1012-23-05 32-1012-23-06 32-1012-23-07 32-1012-23-08 32-1012-23-09 32-1012-23-13 32-1012-32-01 32-1012-32-03 32-1012-32-04 32-1012-32-05 32-1012-32-06 32-1012-32-07 32-1012-32-08 32-1012-32-09 32-1012-32-13 32-1012-45-01 32-1012-45-03 32-1012-45-04 32-1012-45-05 32-1012-45-06 32-1012-45-07 32-1012-45-08 32-1012-45-09 32-1012-45-13 32-1012-57-01 32-1012-57-03 32-1012-57-04 32-1012-57-05 32-1012-57-06 32-1012-57-07 32-1012-57-08 32-1012-57-09 32-1012-57-13 32-1012-66-01 32-1012-66-03 32-1012-66-04 32-1012-66-05 32-1012-66-06 32-1012-66-07 32-1012-66-08 32-1012-66-09 32-1012-66-13 32-1272-00-01 32-1272-00-02 32-1272-00-03 32-1272-00-04 32-1272-00-05 32-1272-00-06 32-1272-00-07 32-1272-00-08 32-1272-00-09 32-1272-00-14 32-1272-23-01 32-1272-23-02 32-1272-23-03 32-1272-23-04 32-1272-23-05 32-1272-23-06 32-1272-23-07 32-1272-23-08 32-1272-23-09 32-1272-23-14 32-1272-32-01 32-1272-32-02 32-1272-32-03 32-1272-32-04 32-1272-32-05 32-1272-32-06 32-1272-32-07 32-1272-32-08 32-1272-32-09 32-1272-32-14 32-1272-45-01 32-1272-45-02 32-1272-45-03 32-1272-45-04 32-1272-45-05 32-1272-45-06 32-1272-45-07 32-1272-45-08 32-1272-45-09 32-1272-45-14 32-1272-57-01 32-1272-57-02 32-1272-57-03 32-1272-57-04 32-1272-57-05 32-1272-57-06 32-1272-57-07 32-1272-57-08 32-1272-57-09 32-1272-57-14 32-1272-66-01 32-1272-66-02 32-1272-66-03 32-1272-66-04 32-1272-66-05 32-1272-66-06 32-1272-66-07 32-1272-66-08 32-1272-66-09 32-1272-66-14 72-4256-00-01 72-4256-00-02 72-4256-00-03 72-4256-23-01 72-4256-23-02 72-4256-23-03 76-4232-00-14 76-4232-23-14 76-4232-45-14 76-4232-57-14 76-4232-66-14 GC932EXD5 GC932EXD6 GC932EXD7 GC932EXD8 GC932EXF5 GC932EXF6 GC932EXF7 GC932EXF8 GC932EXH5 GC932EXH6 GC932EXH7 GC932EXH8 GC932EXV5 GC932EXV6 GC932EXV7 GC932EXV8 GC932EXW5 GC932EXW6 GC932EXW7 GC932EXW8
