- ClimaTek Cooktop 6" Heavy Duty Burner Replaces Frigidaire Tappan Kenmore # 5303299749 5303301459
Product Description
SPECS:

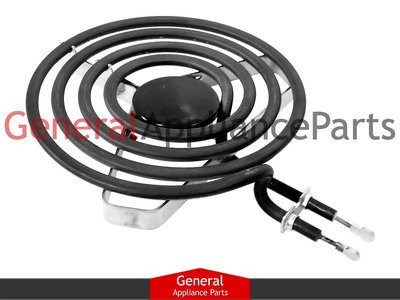

This heavy duty 6" burner element has 4 turns/rings and has a heavy duty D-Frame structure to support the element. This burner element is rated at 1250 watts. The wire looped terminals have been replaced with these solid terminals. This element also replaces some flat style terminal elements.
COMPATIBLE WITH THESE BRANDS:
Frigidaire Electrolux Franklin Gibson White-Westinghouse Westinghouse Tappan Kelvinator Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
The surface burner elements, those metal components that get red-hot and generate heat, are the most important parts of any range. When the elements fail to heat properly, it's time to replace them. It's a simple procedure any electric stove owner can easily accomplish in a few minutes' time. You can usually identify a burnt-out element by blistering or small holes on the element's coils. A burner that plugs into a receptacle is easy to test, just unplug the non-heating burner, plug it into another working receptacle, restore the power to the range, and test it. If the burner works, you know its original receptacle is probably faulty. If it doesn??t work in the good receptacle, the burner is bad and must be replaced. Do not be alarmed if a new element smokes a little when you first use it. This is a factory-applied green coating, that prevents scratches during shipment, burning away.
REPLACES PART NUMBERS:
5303299749 5303301459
USED ON MODELS:
13-3628-00-06 13-3628-08-05 13-3628-23-06 13-3628-32-06 79090102200 79090104200 FEC30C4ABA FEC30C4ABC FEC30C4ACA FEC30C4ACB FEC30C4ACC FEC30C4AQA FEC30C4AQB FEC30C4AQC FEC30C4ASA FEC30C4ASB FEC30C4ASC FEC30C4HBA FEC30C4HCA FEC30C4HSA FEC30C4HTA FEC32C4ACA FEC32C4ACB FEC32C4ACC FEC32C4AQA FEC32C4AQB FEC32C4AQC FEC32C4ASA FEC32C4ASB FEC32C4ASC FEC32C4HCA FEC32C4HSA FEC32C4HTA FEC36C4ACA FEC36C4ACB FEC36C4ACC FEC36C4ASA FEC36C4ASB FEC36C4ASC FEC36C4HCA FEC36C4HSA FEC36C4HTA FEC3X2XAC1 FEC3X2XACA FEC3X2XAD1 FEC3X2XADA FEC3X2XAW1 FEC3X2XAWA FEC3X5XACB FEC3X5XAD3 FEC3X5XADB FEC3X5XAL1 FEC3X5XAW1 FEC3X5XAW3 FEC3X5XAWB FEC3X5XEBA FEC3X5XEBB FEC3X5XESA FEC3X5XESB FEC3X5XETA FEC3X5XHCA FEC6X6XAB4 FEC6X6XABC FEC6X6XABD FEC6X6XACC FEC6X6XACD FEC6X6XAD4 FEC6X6XADC FEC6X6XADD FEC6X6XAW1 FEC6X6XAW2 FEC6X6XAW4 FEC6X6XAWA FEC6X6XAWB FEC6X6XAWC FEC6X6XAWD FED300ASA FED300ASB FED300ASC FED300ASD FED300BEBA FED300BEBB FED300BEBC FED300DSA FED300WCD5 FED300WCDF FED300WCDH FED300WCDI FED300WCW5 FED300WCWF FED300WCWH FED300WCWI FES300ASA FES300ASB FES300ASC FES300ASD FES300ASE FES300BEBA FES300BEBB FES300BEBC FES300DSA FES300WCDE FES300WCDF FES300WCDH FES300WCDI FES300WCWF FES300WCWH FES300WCWI FES300WCWJ TEC3X3XCC1 TEC3X3XCC3 TEC3X3XCCA TEC3X3XCD1 TEC3X3XCD3 TEC3X3XCDA TEC3X3XCW1 TEC3X3XCW3 TEC3X3XCWA TEC6X3XCC1 TEC6X3XCC3 TEC6X3XCCA TEC6X3XCD1 TEC6X3XCD3 TEC6X3XCDA TEC6X3XCW1 TEC6X3XCW3 TEC6X3XCWA
