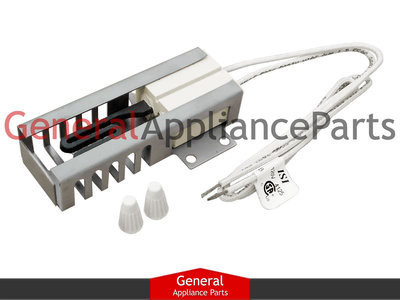

- ClimaTek Range Oven Stove Flat Ignitor Igniter Replaces Frigidaire # F17-037 316T023P06 316T023P02
Product Description
SPECS:
This igniter's amperage range is 3.3 - 3.6. Used with 3.2 to 3.5 amp rated gas safety valves. Includes: high temperature stainless steel shield high temperature MGT wire leads and high temperature ceramic wire nuts to wire into original harness. Replaces long and short ignitors. Be careful not to drop your new ignitor; ignitors are fragile and will break easily.
COMPATIBLE WITH THESE BRANDS:
Frigidaire Electrolux Franklin Gibson White-Westinghouse Westinghouse Tappan Kelvinator Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
The oven igniter, also called a glow bar, heats up the bimetal switch and causes the oven to ignite the gas fed to the burners. A common issue when the oven fails to ignite is a faulty glow bar. If the oven does not start within 90 seconds, the glow bar is likely the issue. Do not be fooled if the glow bar turns red. If it does not reach the appropriate temperature, the oven will not light. If your ignitor uses a connector on the end, reuse the connector from the old ignitor. Use your wire cutters to cut the wires on the old ignitor several inches above the connector. Strip the ends of the wires with a wire stripper. Place the end of a wire on the connector next to the end of a wire on your new ignitor. Use a ceramic wire nut to twist and hold the wires together. Your wires are not color coded, so it does not matter which wires are connected together. Your old ignitor can get very hot even if it doesn't ignite the burner tube.
REPLACES PART NUMBERS:
5303200508 F17-037 316T023P06 316T023P02
USED ON MODELS:
3448A 3468A 6287839093 6287859094 72-2547-00-01 72-2547-00-02 72-2547-00-03 72-2547-00-04 72-2547-00-05 72-2547-00-06 72-2547-00-07 72-2547-00-08 72-2547-00-09 72-2547-23-01 72-2547-23-02 72-2547-23-03 72-2547-23-04 72-2547-23-05 72-2547-23-06 72-2547-23-07 72-2547-23-08 72-2547-23-09 72-2547-66-01 72-2547-66-02 72-2547-66-03 72-2547-66-04 72-2547-66-05 72-2547-66-06 72-2547-66-07 72-2547-66-08 72-2547-66-09 72-3651-00 72-3651-00-01 72-3651-00-02 72-3651-00-03 72-3651-00-04 72-3651-00-05 72-3651-00-06 72-3651-00-07 72-3651-00-08 72-3651-01 72-3651-23-01 72-3651-23-02 72-3651-23-03 72-3651-23-04 72-3651-23-05 72-3651-23-06 72-3651-23-07 72-3651-23-08 72-3657-00-01 72-3657-00-02 72-3657-00-03 72-3657-00-04 72-3657-00-05 72-3657-00-06 72-3657-00-07 72-3657-00-08 72-3657-00-09 72-3657-00-10 72-3657-00-11 72-3657-00-12 72-3657-00-13 72-3657-23-01 72-3657-23-02 72-3657-23-03 72-3657-23-04 72-3657-23-05 72-3657-23-06 72-3657-23-07 72-3657-23-08 72-3657-23-09 72-3657-23-10 72-3657-23-11 72-3657-23-12 72-3657-23-13 72-3657-66-01 72-3657-66-02 72-3657-66-03 72-3657-66-04 72-3657-66-05 72-3657-66-06 72-3657-66-07 72-3657-66-08 72-3657-66-09 72-3657-66-10 72-3657-66-11 72-3657-66-12 72-3657-66-13 72-3662-00-01 72-3662-23-01 72-3977-00-01 72-3977-00-02 72-3977-00-03 72-3977-00-04 72-3977-00-05 72-3977-00-06 72-3977-00-07 72-3977-00-08 72-3977-00-09 72-3977-00-10 72-3977-23-01 72-3977-23-02 72-3977-23-03 72-3977-23-04 72-3977-23-05 72-3977-23-06 72-3977-23-07 72-3977-23-08 72-3977-23-09 72-3977-23-10 72-3977-66-01 72-3977-66-02 72-3977-66-03 72-3977-66-04 72-3977-66-05 72-3977-66-06 72-3977-66-07 72-3977-66-08 72-3977-66-09 72-3977-66-10 72-3981-00-01 72-3981-00-02 72-3981-00-03 72-3981-00-04 72-3981-00-05 72-3981-00-06 72-3981-00-07 72-3981-00-08 72-3981-23-01 72-3981-23-02 72-3981-23-03 72-3981-23-04 72-3981-23-05 72-3981-23-06 72-3981-23-07 72-3981-23-08 72-3989-00-01 72-3989-00-02 72-3989-00-03 72-3989-00-04 72-3989-00-05 72-3989-00-06 72-3989-23-01 72-3989-23-02 72-3989-23-03 72-3989-23-04 72-3989-23-05 72-3989-23-06 72-3989-66-01 72-3989-66-02 72-3989-66-03 72-3989-66-04 72-3989-66-05 72-3989-66-06 72-4256-00-01 72-4256-00-02 72-4256-00-03 72-4256-23-01 72-4256-23-02 72-4256-23-03 72-7657-00-02 72-7657-00-03 72-7657-00-04 72-7657-00-05 72-7657-00-06 72-7657-00-07 72-7657-00-08 72-7657-00-09 72-7657-23-01 72-7657-23-02 72-7657-23-03 72-7657-23-04 72-7657-23-05 72-7657-23-06 72-7657-23-07 72-7657-23-08 72-7657-23-09 72-7657-66-01 72-7657-66-02 72-7657-66-03 72-7657-66-04 72-7657-66-05 72-7657-66-06 72-7657-66-07 72-7657-66-08 72-7657-66-09 72-7977-00-01 72-7977-00-02 72-7977-00-03 72-7977-00-04 72-7977-00-05 72-7977-00-06 72-7977-00-07 72-7977-00-08 72-7977-00-09 72-7977-00-10 72-7977-23-01 72-7977-23-02 72-7977-23-03 72-7977-23-04 72-7977-23-05 72-7977-23-06 72-7977-23-07 72-7977-23-09 72-7977-23-10 72-7977-66-01 72-7977-66-02 72-7977-66-03 72-7977-66-04 72-7977-66-05 72-7977-66-06 72-7977-66-07 72-7977-66-08 72-7977-66-09 72-7977-66-10 72-7989-00-01 72-7989-00-02 72-7989-00-03 72-7989-23-02 72-7989-23-03 72-7989-66-01 72-7989-66-02 72-7989-66-03 791783889 7917838890 7917838891 7917839090 7917839091 7917839092 7917839094 791785889 7917858890 7917858892 7917859090 7917859091 7917859092 7917859093 7917859094 7917859095 GC932EXD0 GC932EXD1 GC932EXD2 GC932EXD3 GC932EXD4 GC932EXF0 GC932EXF1 GC932EXF2 GC932EXF3 GC932EXF4 GC932EXH0 GC932EXH1 GC932EXH2 GC932EXH3 GC932EXH4 GC932EXV0 GC932EXV1 GC932EXV2 GC932EXV3 GC932EXV4 GC932EXW0 GC932EXW1 GC932EXW2 GC932EXW3 GC932EXW4 TGO336BFD1 TGO336BFDA TGO336BFDB TGO336BFW1 TGO336BFWA TGO336BFWB TGO336BGD1 TGO336BGD2 TGO336BGD3 TGO336BGW1 TGO336BGW2 TGO336BGW3 TGO346BCDA TGO346BCDB TGO346BCDC TGO346BCDD TGO346BCWA TGO346BCWB TGO346BCWC TGO346BCWD TGO356BCDA TGO356BCDB TGO356BCDC TGO356BCDD TGO356BCWA TGO356BCWB TGO356BCWC TGO356BCWD TGO356BFD3 TGO356BFD4 TGO356BFDA TGO356BFDB TGO356BFW2 TGO356BFW3 TGO356BFW4 TGO356BFWA TGO356BFWB TGO356BHD1 TGO356BHD2 TGO356BHD3 TGO356BHW1 TGO356BHW2 TGO356BHW3
