- ClimaTek Stove Range 8" Surface Element Replaces Frigidaire Kenmore Westinghouse Gibson # 316442303
Product Description
SPECS:

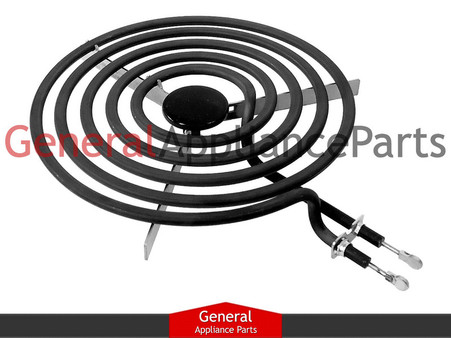

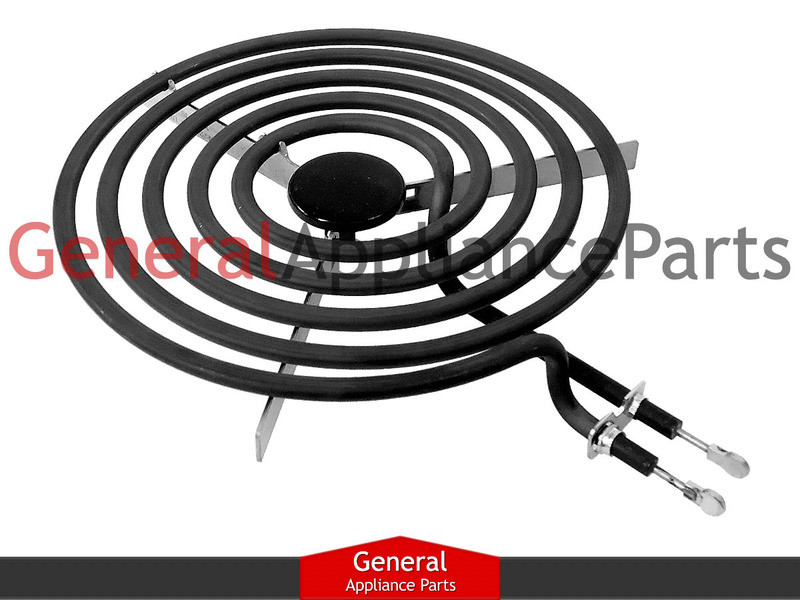

This 8" burner element has 5 turns/rings and has a Y-Frame structure to support the element. This burner element is rated at 2100 watts. The wire looped terminals have been replaced with these solid terminals. This element also replaces some flat style terminal elements.
COMPATIBLE WITH THESE BRANDS:
Frigidaire Electrolux Franklin Gibson White-Westinghouse Westinghouse Tappan Kelvinator Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
The surface burner elements, those metal components that get red-hot and generate heat, are the most important parts of any range. When the elements fail to heat properly, it's time to replace them. It's a simple procedure any electric stove owner can easily accomplish in a few minutes' time. You can usually identify a burnt-out element by blistering or small holes on the element's coils. A burner that plugs into a receptacle is easy to test, just unplug the non-heating burner, plug it into another working receptacle, restore the power to the range, and test it. If the burner works, you know its original receptacle is probably faulty. If it doesn??t work in the good receptacle, the burner is bad and must be replaced. Do not be alarmed if a new element smokes a little when you first use it. This is a factory-applied green coating, that prevents scratches during shipment, burning away.
REPLACES PART NUMBERS:
316442303 318372216 5304437242 318372206 318112300
USED ON MODELS:
79041202903 79041203903 79041204903 79041209903 79041212903 79041213903 79041214903 79041219903 79042492400 79042492401 79042492402 79042493400 79042493401 79042493402 79042494400 79042494401 79042494402 79042499400 79042499401 79042499402 79043492400 79043492401 79043492402 79043493400 79043493401 79043493402 79043494400 79043494401 79043494402 79043499400 79043499401 79043499402 BEC212ES1 BEC212ES2 BEC212ES3 BEC316ES1 BEC317ES1 BEC317ES2 BEC318ES1 BEC318ES2 BEC358ES1 BEC358ES3 BFEF320ES1 BFEF320ES2 CEH343001 CFEF210CS4 CFEF210CS5 CFEF210CS6 CFEF210CS7 CFEF2405LWA CFEF2415LWA CFEF257CS3 CFEF257CS4 CFEF257CS5 CFEF257CS6 CFEF310AS1 CFEF310ES1 CFEF312EB1 CFEF312EQ1 CFEF312ES1 CFEF316ES1 CFEF317ES1 CFEF317ES2 CFEF318ES1 CFEF357EB1 CFEF357EC1 CFEF357EC2 CFEF357EQ1 CFEF357ES1 CFEF357GS1 CFEF357GS2 CFEF357GS3 CFEF358EB1 CFEF358EB2 CFEF358EB3 CFEF358EB4 CFEF358EC1 CFEF358EC2 CFEF358EC3 CFEF358EC4 CFEF358EC5 CFEF358EQ1 CFEF358ES1 CFEF358ES2 CFEF358ES3 CFEF358ES4 CGEF309ES1 CGEF310ES1 CGEF310ES2 CGEF312ES1 CGEF312ES2 CGEF316AS1 CGEF317AS1 CMEF212EB1 CMEF212EB2 CMEF212EB3 CMEF212EB4 CMEF212EB5 CMEF212EB6 CMEF212EQ1 CMEF212ES1 CMEF212ES2 CMEF212ES3 CMEF212ES4 CMEF212ESD CMEF212ESE CSK341003 CWEF309ES1 CWEF310ES1 CWEF311ES1 CWEF312ES1 CWEF355ES1 FEFB55CHSA FEFB55CHSE MEF325CGS1 MEF325CGS4 MEF355CGB1 MEF355CGB5 MEF355CGS1 MEF355CGS5 PFEF317ES1 PFEF319ES1 PGLEF365EC1 PGLEF365EC3 PGLEF365EC4 PGLEF365ES1 PGLEF365ES2 PGLEF365ES3 PGLEF365ES4
