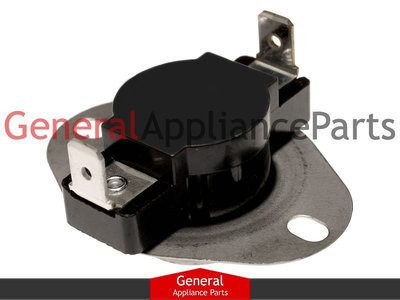

- ClimaTek Dryer Limit Switch Replaces Frigidaire # WQ602978 Q000602978 F136312-000 F136312 8004644
Product Description
SPECS:
This thermostat has a limit of 130 degrees Fahrenheit and a differential of 15 degrees. Meaning that with this thermostat, the heating element will cut out at 130 degrees and cycle back on once the internal temperature drops by 15 degrees.
COMPATIBLE WITH THESE BRANDS:
Frigidaire Electrolux Franklin Gibson White-Westinghouse Westinghouse Tappan Kelvinator Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
If the limit switch has blown, it might appear black or gray upon inspection. Also, your appliance likely has lost some of its capabilities. Even if you restore power to the appliance by resetting its main circuit breakers, tripped by the limit switch, the appliance might not heat properly. Only after you replace the switch will all of the appliance's typical competences return. Don't replace the switch until you identify the reason your appliance overheated and caused the switch to trigger; otherwise the issue might happen again.
REPLACES PART NUMBERS:
5308015398 602978 WQ602978 Q000602978 F136312-000 F136312 8004644 5308004644 3281174 08015398 08004644 01134151
USED ON MODELS:
41789195100 41789195110 41789195120 41789195600 41789195610 41789195620 41789195800 41789195810 41789195820 41789395100 41789395101 41789395110 41789395600 41789395701 41789395710 41789395800 41789395801 41789395810 4178965120 4178965720 4178965820 41789695100 41789695120 41789695130 41789695700 41789695720 41789695730 41789695800 41789695820 41789695830 41789875100 41789875110 41789875700 41789875710 41789875800 41789875810 41789975100 41789975800 41799165100 41799165110 41799165120 41799165130 41799165800 41799165810 41799165820 41799165830 41799975100 41799975110 41799975800 41799975810 47-2151-00-01 47-2151-00-02 47-2151-23-01 47-2151-23-02 49-2151-00-01 49-2151-00-02 49-2151-23-01 49-2151-23-02 49-2827-00-01 49-2827-23-01 7001-80A DE271KDD1 DE271KDD2 DE271KDH2 DE271KDW1 DE271KDW2 DE271KDW6 DE271KDW7 DE271KDW8 DE27S6WPMC DE3900ADD1 DE3900AWW1 DE400KDD1 DE500KDD1 DEFW0 DET100KD1 DET100KD2 DET100KW1 DET100KW2 DG27S6WPMA DG27S6WPMC DG3900ADD1 DG3900AWW1 DG400TXD0 DG400TXD1 DG400TXW0 DG400TXW1 DGFW0 FDE116RBW0 FDE116RBW1 FDE216RBS0 FDE216RBS1 FDE216RBS2 FDE216RBT0 FDE216RES0 FDE216RES1 FDE216RES2 FDE436RBS1 FDE436RBT1 FDEB23RGS0 FDEB23RGS1 FDEB23RGS2 FDG116RBW0 FDG216RBS0 FDG216RBS1 FDG216RBS2 FDG216RES0 FDGB23RGS0 FDGB23RGS1 FDGB23RGS2 FER111AS0 FER111AS1 FER111AS2 FER211AS0 FER211AS1 FER211AS2 FER311CFS0 FER311FS0 FFT7001-80B FGR211AS0 FGR211AS1 FGR211AS2 FGR211AS3 FGR211AS4 FGR211MAS0 FGR311FS0 FGR311FS1 FGR311FS2 FSE346RHS0 FSG346RHS0 GDE216REW0 GDE216REW1 GDE216RHS0 LC120DH5 LC120DL5 LC120DW5 LC120FH1 LC120FL0 LC120FL1 LC120FW0 LC120FW1 LC120JL5 LC120JW5 LCE441AL1 LCE441AW1 LCE441LL2 LCE441LW1 LCE441LW2 LCE441PL0 LCE441PL1 LCE441PW0 LCE441PW1 MDE116RBW0 MDE116RBW1 MDE116RBW2 MDE116REW0 MDE116REW1 MDE216RBD0 MDE216RBD1 MDE216RBD2 MDE216RBW0 MDE216RBW1 MDE216RBW2 MDE216RBWD0 MDE216RBWW0 MDE216RED0 MDE216RED1 MDE216REW0 MDE216REW1 MDE216REW2 MDE336MBD0 MDE336MBW0 MDE336MBWD0 MDE336MBWW0 MDE436RBD0 MDE436RBW0 MDE436RBWD0 MDE436RBWW0 MDG116RBW0 MDG116RBW1 MDG216RBD0 MDG216RBD1 MDG216RBD2 MDG216RBW1 MDG216RBW2 MDG216RBWD0 MDG216RED0 MDG216RED1 MDG216REW0 MDG216REW1 MDG336MBW0 MDG336MBWW0 MDG436RBW0 MGD436RBW0 SM115JXD1 SM115JXD2 SM115JXD3 SM115JXD4 SM115JXW1 SM115JXW2 SM115JXW3 SM115JXW4 SM115LXD1 SM115LXD2 SM115LXW1 SM115LXW2 SM115MXD1 SM115MXD2 SM115MXW1 SM115MXW2 SM115PXD1 SM115PXD2 SM115PXD3 SM115PXW1 SM115PXW2 SM115PXW3 WDE116REW0 WDE213RHS0 WDE216RBD0 WDE216RBD1 WDE216RBD2 WDE216RBW0 WDE216RBW1 WDE216RBW2 WDG216RBD0 WDG216RBD1 WDG216RBD2 WDG216RBW0 WDG216RBW1 WDG216RBW2 WER111ES0 WER211CES0 WER211ES0 WGR211ES0 WGR211ES1 WGR211ES2 WL24F2WWMA WL24F2WWMB WL24F2WYMA WL24F2WYMB WL24F2WYMC WWRE5700KW0 WWRG5700KW0
