- ClimaTek Cooktop 8" Surface Burner Replaces Frigidaire # 5308004685 5303301460 5303299750 3051559
Product Description
SPECS:

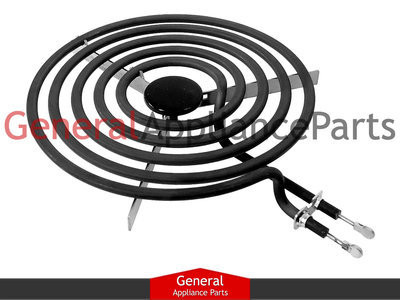

This 8" burner element has 5 turns/rings and has a Y-Frame structure to support the element. This burner element is rated at 2100 watts. The wire looped terminals have been replaced with these solid terminals. This element also replaces some flat style terminal elements.
COMPATIBLE WITH THESE BRANDS:
Frigidaire Electrolux Franklin Gibson White-Westinghouse Westinghouse Tappan Kelvinator Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
The surface burner elements, those metal components that get red-hot and generate heat, are the most important parts of any range. When the elements fail to heat properly, it's time to replace them. It's a simple procedure any electric stove owner can easily accomplish in a few minutes' time. You can usually identify a burnt-out element by blistering or small holes on the element's coils. A burner that plugs into a receptacle is easy to test, just unplug the non-heating burner, plug it into another working receptacle, restore the power to the range, and test it. If the burner works, you know its original receptacle is probably faulty. If it doesn??t work in the good receptacle, the burner is bad and must be replaced. Do not be alarmed if a new element smokes a little when you first use it. This is a factory-applied green coating, that prevents scratches during shipment, burning away.
REPLACES PART NUMBERS:
5308011964 P382057 K5008101 K5007901 8011964 5308004685 5303301460 5303299750 5303210560 5303015205 3051559 3015611 3015205 08011964 08004685
USED ON MODELS:
13-2589-00-01 13-2589-32-01 13-3008-00-01 13-3008-23-01 13-3008-45-01 13-3008-57-01 13-3008-66-01 13-3028-00-01 13-3028-00-02 13-3028-08-02 13-3028-23-01 13-3028-23-02 13-3028-45-01 13-3028-57-01 13-3028-66-01 13-3628-00-04 13-3628-00-05 13-3628-00-06 13-3628-08-03 13-3628-08-05 13-3628-23-04 13-3628-23-05 13-3628-23-06 13-3628-32-04 13-3628-32-06 31-2232-00-01 31-2232-00-02 31-2232-00-03 31-2232-23-01 31-2232-23-02 31-2232-23-03 31-2239-00-01 31-2239-00-02 31-2239-00-03 31-2239-00-04 31-2239-00-05 31-2239-00-06 31-2239-23-01 31-2239-23-02 31-2239-23-03 31-2239-23-04 31-2239-23-05 31-2239-23-06 31-2442-00-01 31-2442-00-02 31-2442-23-01 31-2442-23-02 31-2452-00-01 33-1027-00-01 33-1027-00-02 33-1027-23-01 33-1027-23-02 33-1467-00-01 33-1467-00-02 33-1467-00-03 77-4950-00-01 77-4950-00-02 77-4950-00-03 77-4950-00-04 77-4950-00-05 77-4950-23-01 77-4950-23-02 77-4950-23-03 77-4950-23-04 77-4950-23-05 79045252400 79045254400 79046252400 79046254400 BE30B7BY CEA1M1WSTA CEA1M1WSTB CEA1M2WSTA CEA1M2WSTB CEA3M2WSTA CEA3M2WSTB CEB1M1WSTA CEB1M1WSTB CEB3M2WSTA CEB3M2WSTB CEC1M1WSTA CEC1M1WSTB CEC1M2WSAA CEC1M2WXA CEC1M2WXB CEC1M2WXC CEC1M2WXD CEC2M4WSAA CEC2M4WSAB CEC2M4WSAC CEC2M4WSAD CEC2M4WXA CEC2M4WXB CEC2M4WXC CEC2M4WXD CEC2M4WXE CEC2S5WSAA CEC2S5WSAB CEC2S5WSAC CEC3M2WXA CEC3M2WXB CEC3M5WSAA CEC3M5WSAB CEC3M5WSAC CEC3M5WSAD CEC3S5WSAA CEC3S5WSAB CEC3S5WSAC CEC3S5WSAD CEC3S5WSAE CEC3S5WXA CEC3S5WXB CEC3S5WXC CEC3S5WXD CEC4C4WSAB CEC4C4WSAC CEC4M4WXA CEC4M4WXB CEC4M4WXC CEC4M4WXD CEC4M4WXE CEC4M7WSAA CEC4S6DXE CEC4S6WSAA CEC4S6WSAB CEC4S6WSAC CEC4S6WSAD CEC4S6WXA CEC4S6WXB CEC4S6WXC CEC4S6WXD CEC4S6WXE CEE2M4WS5 CEE2M4WSAA CEE2M4WSE CEE2M4WSPB CEE2M4WSPC CEE2M4WSPD F04B322BDA F04B322BDB F04B322BDC F04B322BWA F04B322BWB F04B322BWC F04C322BSA F04C322BSB FEC30C4AB1 FEC30C4ABA FEC30C4ABC FEC30C4ABD FEC30C4AC1 FEC30C4ACA FEC30C4ACB FEC30C4ACC FEC30C4ACD FEC30C4AQ1 FEC30C4AQA FEC30C4AQB FEC30C4AQC FEC30C4AQD FEC30C4AS1 FEC30C4ASA FEC30C4ASB FEC30C4ASC FEC30C4ASD FEC30C4HBA FEC30C4HCA FEC30C4HSA FEC30C4HTA FEC32C4AC1 FEC32C4ACA FEC32C4ACB FEC32C4ACC FEC32C4ACD FEC32C4AQA FEC32C4AQB FEC32C4AQC FEC32C4AQD FEC32C4AS1 FEC32C4ASA FEC32C4ASB FEC32C4ASC FEC32C4ASD FEC32C4HCA FEC32C4HSA FEC32C4HTA FEC36C4AC1 FEC36C4ACA FEC36C4ACB FEC36C4ACC FEC36C4ACD FEC36C4AS1 FEC36C4ASA FEC36C4ASB FEC36C4ASC FEC36C4ASD FEC36C4HCA FEC36C4HSA FEC36C4HTA FEC3X2XAC1 FEC3X2XACA FEC3X2XAD1 FEC3X2XADA FEC3X2XAW1 FEC3X2XAWA FEC3X5XACB FEC3X5XAD3 FEC3X5XADB FEC3X5XAL1 FEC3X5XAW1 FEC3X5XAW3 FEC3X5XAWB FEC3X5XEBA FEC3X5XEBB FEC3X5XESA FEC3X5XESB FEC3X5XETA FEC3X5XHCA FEC6X6XAB4 FEC6X6XABC FEC6X6XABD FEC6X6XACC FEC6X6XACD FEC6X6XAD4 FEC6X6XADC FEC6X6XADD FEC6X6XAW1 FEC6X6XAW2 FEC6X6XAW4 FEC6X6XAWA FEC6X6XAWB FEC6X6XAWC FEC6X6XAWD FED300ASA FED300ASB FED300ASC FED300ASD FED300BEBA FED300BEBB FED300BEBC FED300DSA FED300DSB FED300WCD5 FED300WCDF FED300WCDH FED300WCDI FED300WCW5 FED300WCWF FED300WCWH FED300WCWI FEF300PADA FEF300PAWA FEF311SADA FEF311SADB FEF311SADC FEF311SADD FEF311SADE FEF311SADF FEF311SADG FEF311SAWA FEF311SAWB FEF311SAWC FEF311SAWD FEF311SAWE FEF311SAWF FEF311SAWG FEF311SAWH FEF322BADA FEF322BADB FEF322BADC FEF322BADD FEF322BADE FEF322BADF FEF322BADG FEF322BADH FEF322BADJ FEF322BADK FEF322BADL FEF322BADM FEF322BAWA FEF322BAWB FEF322BAWC FEF322BAWD FEF322BAWE FEF322BAWF FEF322BAWG FEF322BAWH FEF322BAWJ FEF322BAWK FEF322BAWL FEF322BAWM FEF322BXAWA FEF322CASA FEF322CASB FEF322CASC FEF322CASD FEF322CASE FEF322CASF FEF322CASG FEF322CASH FEF322CCTA FEF322CCTB FEF322CCTC FEF322CCTD FEF322WHSA FES300ASA FES300ASB FES300ASC FES300ASD FES300ASE FES300ASF FES300BEBA FES300BEBB FES300BEBC FES300DSA FES300DSB FES300WCDE FES300WCDF FES300WCDH FES300WCDI FES300WCWF FES300WCWH FES300WCWI FES300WCWJ FFEC3005LB1 FFEC3005LQ1 FFEC3005LS1 FFEC3005LW1 FFEC3205LS1 FFEC3205LW1 FFEC3605LB1 FFEC3605LS1 FFEC3605LW1 GEF300PADA GEF300PAWA GEF301SADA GEF301SAWA GEF311WADA GEF311WAWA GEF312BADA GEF312BAWA GEF352BHDB GEF352BHWB GEF352CHSB GEF354BADA GEF354BAWA GEF400WAW1 GEF400WAWA KEC3M6NSAA KEC457NSAA KP332LD1 KP332LD2 KP332LH1 KP332LK1 KP332LW1 KP332LW2 KP332LW2 Westinghouse KP432KDD0 KP432KDH0 KP432KDK0 KP432KDW0 KP532LD0 KP532LD2 KP532LD3 KP532LF0 KP532LH0 KP532LK0 KP532LK3 KP532LV0 KP532LW0 KP532LW2 KP532LW2 Westinghouse KP532LW3 MEF322BGDA MEF322BGDB MEF322BGDC MEF322BGDD MEF322BGDE MEF322BGWA MEF322BGWB MEF322BGWC MEF322BGWD MEF322BGWE MEF322WGSA MEF322WGSC MEF322WGSD MEF322WGSE MEF342BGDA MEF342BGDB MEF342BGDC MEF342BGDD MEF342BGWA MEF342BGWB MEF342BGWC MEF342BGWD MEF352BGDA MEF352BGDB MEF352BGDC MEF352BGDD MEF352BGWA MEF352BGWB MEF352BGWC MEF352BGWD MEF352BGWE MEF352CFSA MEF352CGSA MEF352CGSB MEF352CGSC MEF352CGSD R433MDM2 R433MDM4 R433MEM3 R530DH0 R530DW0 REC305CD1 REC305CF0 REC305CT1 REC305CV0 REC305CW1 REC306CD0 REC306CF1 REC306CT0 REC306CV1 REC306CW0 REC406CF0 REC406CV0 REC406DD2 REC406DW2 REG36AA2 REG36AA3 REG36AA4 REG36AA5 REG36AA6 REG36AF2 REG36AF3 REG36AF4 REG36AF5 REG36AF6 REG36AH2 REG36AH3 REG36AH4 REG36AH5 REG36AH6 REG36AL2 REG36AL3 REG36AL4 REG36AL5 REG36AL6 REG36AW2 REG36AW3 REG36AW4 REG36AW5 REG36AW6 REG36CAA2 REG36CAA3 REG36CAA4 REG36CAA5 REG36CAA6 REG36CAF2 REG36CAF3 REG36CAF4 REG36CAF5 REG36CAF6 REG36CAH2 REG36CAH3 REG36CAH4 REG36CAH5 REG36CAH6 REG36CAL2 REG36CAL3 REG36CAL4 REG36CAL5 REG36CAL6 REG36CAW2 REG36CAW3 REG36CAW4 REG36CAW5 REG36CAW6 REG38BLL1 REG38BLW1 REG39WLL0 REG39WLW0 REG433MDW2 REG433MDW3 REG433MDW4 REG433MDW5 REG46CH2 REG46CH3 REG46CH4 REG46CL0 REG46CL2 REG46CL3 REG46CL4 REG46CW0 REG46CW2 REG46CW3 REG46CW4 REG533D2 REG533DH0 REG533DL2 REG533DL3 REG533DL4 REG533DW0 REG533MDM2 REG533MDM3 REG533MDM4 REP302CD1 REP302CF2 REP302CJ2 REP302CT1 REP302CV2 REP302CW1 RER305CD1 RER305CD2 RER305CF0 RER305CT1 RER305CT2 RER305CV0 RER305CW1 RER305CW2 RER305GD0 RER305GD1 RER305GF0 RER305GF1 RER305GT0 RER305GT1 RER305GV0 RER305GV1 RER305GW0 RER305GW1 RER306CD0 RER306CF1 RER306CF2 RER306CT0 RER306CV1 RER306CV2 RER306CW0 RER307CD1 RER307CD2 RER307CF0 RER307CT1 RER307CT2 RER307CV0 RER307CW1 RER307CW2 RER375GD1 RER375GD2 RER375GD3 RER375GW1 RER375GW2 RER375GW3 RER406GD1 RER406GD2 RER406GD3 RER406GT1 RER406GT2 RER406GW1 RER406GW2 RER406GW3 RG35AL2 RG35AL3 RG35AL4 RG35AW2 RG35AW3 RG35AW4 RG35CAL2 RG35CAL3 RG35CAL4 RG35CAW2 RG35CAW3 RG35CAW4 RG45CL0 RG45CL1 RG45CL2 RG45CL3 RG45CL4 RG45CW0 RG45CW1 RG45CW2 RG45CW3 RG45CW4 RG533DH0 RG533DW2 RG533DW3 RG533MDW1 RG533MDW2 RGC434MDW1 RGC434MDW2 RS35BAA2 RS35BAA3 RS35BAA4 RS35BAF2 RS35BAF3 RS35BAF4 RS35BAH2 RS35BAH3 RS35BAH4 RS35BAL1 RS35BAL2 RS35BAL3 RS35BAL4 RS35BAW1 RS35BAW2 RS35BAW3 RS35BAW4 RSE37BAF5 RSE37BAL2 RSE37BAL3 RSE37BAL4 RSE37BAL5 RSE37BAW2 RSE37BAW3 RSE37BAW4 RSE37BAW5 RSEG37BFH1 RSEG37BFL0 RSEG37BFL2 RSEG37BFW0 RSEG37BFW1 RSEG37BFW2 TEC3X3XCC1 TEC3X3XCC3 TEC3X3XCCA TEC3X3XCD1 TEC3X3XCD3 TEC3X3XCDA TEC3X3XCW1 TEC3X3XCW3 TEC3X3XCWA TEC6X3XCC1 TEC6X3XCC3 TEC6X3XCCA TEC6X3XCD1 TEC6X3XCD3 TEC6X3XCDA TEC6X3XCW1 TEC6X3XCW3 TEC6X3XCWA TEF322BHDA TEF322BHWA TEF322SCDA TEF322SCDB TEF322SCDC TEF322SCWA TEF322SCWB TEF322SCWC TEF322WHSA TEF352BHDA TEF352BHWA TEF352CHSA TEF352CHTA
