- ClimaTek Cooktop 8" Surface Burner Replaces Amana # 14205027 0304871 0059261 0057414 0053234 0052960
Product Description
SPECS:

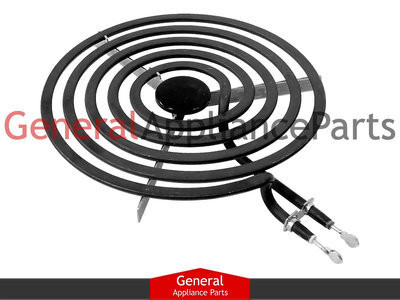

This 8" burner element has 5 turns/rings and has a Y-Frame structure to support the element. This burner element is rated at 2600 watts. The wire looped terminals have been replaced with these solid terminals. This element also replaces some flat style terminal elements.
COMPATIBLE WITH THESE BRANDS:
Whirlpool Estate KitchenAid Roper Maytag Admiral Amana Speed Queen Jenn-Air Magic Chef Crosley Caloric Glenwood Hardwick Menumaster Modern Maid Montgomery Wards Norge JC Penney Wards Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
The surface burner elements, those metal components that get red-hot and generate heat, are the most important parts of any range. When the elements fail to heat properly, it's time to replace them. It's a simple procedure any electric stove owner can easily accomplish in a few minutes' time. You can usually identify a burnt-out element by blistering or small holes on the element's coils. A burner that plugs into a receptacle is easy to test, just unplug the non-heating burner, plug it into another working receptacle, restore the power to the range, and test it. If the burner works, you know its original receptacle is probably faulty. If it doesn??t work in the good receptacle, the burner is bad and must be replaced. Do not be alarmed if a new element smokes a little when you first use it. This is a factory-applied green coating, that prevents scratches during shipment, burning away.
REPLACES PART NUMBERS:
31734606 Y704114 Y0304872 Y0304871 Y0059261 Y0057414 Y0053234 Y0052960 Y0045556 R0710191 R0710160 R0710044 M61D34 D8549503 704114 7-4114 59261 57414 51906P01 45556 332-212 332-161 332-158 304872 304871 1938345 1938286 1938274 1938256 1938-345 1938-256 14205027 0304872 0304871 0059261 0057414 0053234 0052960
USED ON MODELS:
A100 A100B A100L A100W ARC700E ARC700E ARC700LL ARC700LL ARC700WW ARC700WW ARR6220C ARR6220L ARR6220W ARR623L ARR623L,W ARR623L,W ARR623W ARR624L ARR624L ARR624L1 ARR624L1 ARR624W ARR624W ARR624W1 ARR624W1 ARR625L ARR625L ARR625L,W ARR625L,W ARR625L,W ARR625W ARR625W ARR626L ARR626L ARR626L1 ARR626W ARR626W ARR626W1 ARR626WW ARR626WW ARR629L ARR629L,W ARR629L,W ARR629W ARR629WW ARR629WW ARR6300LL ARR6300LL ARR6300LL ARR6300LL ARR6300LL ARR6300WW ARR6300WW ARR6300WW ARR6300WW ARR6300WW ARR630L ARR630L1 ARR630LL ARR630LL ARR630LL ARR630W ARR630W1 ARR630WW ARR630WW ARR630WW ARR632E ARR632E ARR632WW ARR632WW ARR633E ARR633E ARR633E ARR633E ARR633E ARR633W ARR633WW ARR633WW ARR633WW ARR6400L ARR6400L ARR6400L ARR6400L ARR6400L ARR6400L ARR6400LL ARR6400LL ARR6400LL ARR6400LL ARR6400LL ARR6400LL ARR6400LL ARR6400LL ARR6400LL ARR6400LL ARR6400W ARR6400W ARR6400W ARR6400W ARR6400W ARR6400W ARR6400WW ARR6400WW ARR6400WW ARR6400WW ARR6400WW ARR6400WW ARR6400WW ARR6400WW ARR6400WW ARR6400WW ARR6420CC ARR6420CC ARR6420WW ARR6420WW ARRS6550E ARRS6550E ARRS6550E ARRS6550E ARRS6550E ARRS6550E ARRS6550E ARRS6550E ARRS6550E ARRS6550E ARRS6550E ARRS6550E ARRS6550E ARRS6550E ARRS6550E ARRS6550LL ARRS6550LL ARRS6550LL ARRS6550LL ARRS6550LL ARRS6550LL ARRS6550WW ARRS6550WW ARRS6550WW ARRS6550WW ARRS6550WW ARRS6550WW ARRS6550WW ARRS6550WW ARRS6550WW ARRS6550WW ARS635 ARS635 ARS635 ARS635 ARS635W ARS635W ARS635W ARS636E ARS636E ARS636WW ARS636WW CARC700E CARC700E CARC700WW CARC700WW CARR629L CARR629L CARR629W CARR629W CARR629WW CARR629WW CARR630L CARR630L CARR630L CARR630L CARR630W CARR630W CARR630W CARR630W CARR630WW CARR630WW CARR630WW CARR630WW CARR632E CARR632E CARR632NWW CARR632WW CARS636E CARS636WW CARS637E CARS637E CARS637E CARS637WW CARS637WW CARS637WW EHF30002L EHF30002W EHS342-OF EHS344-OF EHS345-OF EHS346-OF EHT-344 EHT-345 EHT-346 EHT332 EHT333 EHT334 EJT-346 EJT334 EKT-396 ESF31002L ESF31002W ESF32002L ESF32002W ESF33002L ESF33002L ESF33002L ESF33002W ESF33002W ESF33002W ESF34002L ESF34002L ESF34002L ESF34002LG ESF34002LG ESF34002LG ESF34002W ESF34002W ESF34002W ESF34002WG ESF34002WG ESF34002WG ESK37002K ESK37002K ESK37002L ESK37002L ESK37002L ESK37002LG ESK37002LG ESK37002LG ESK37002W ESK37002W ESK37002W ESK37002WG ESK37002WG ESK37002WG ESK37002WW ESK37002WW ESS307 ESS307-OF ESS341-OF ESS342-OF ESS343-OF ESS344-OF ESS345-OF EST307 EST308 EST3102K EST3102K EST3102K EST3102L EST3102L EST3102L EST3102W EST3102W EST3102W EST3102WW EST3102WW EST3102WW EST345 EST346 EST356 EST380 EST381 EST399 EST3992L EST3992L EST3992L EST3992L EST3992W EST3992W EST3992W EST3992W ZRR6400CC ZRR6400WW ZRR6400WW ZRR6400WW ZRR6400WW ZRRS6550E ZRRS6550E ZRRS6550E ZRRS6550E ZRRS6550WW ZRRS6550WW ZRRS6550WW ZRRS6550WW ZRRSC8050E ZRRSC8050E ZRRSC8050E ZRRSC8050WW ZRRSC8050WW ZRRSC8050WW more:
